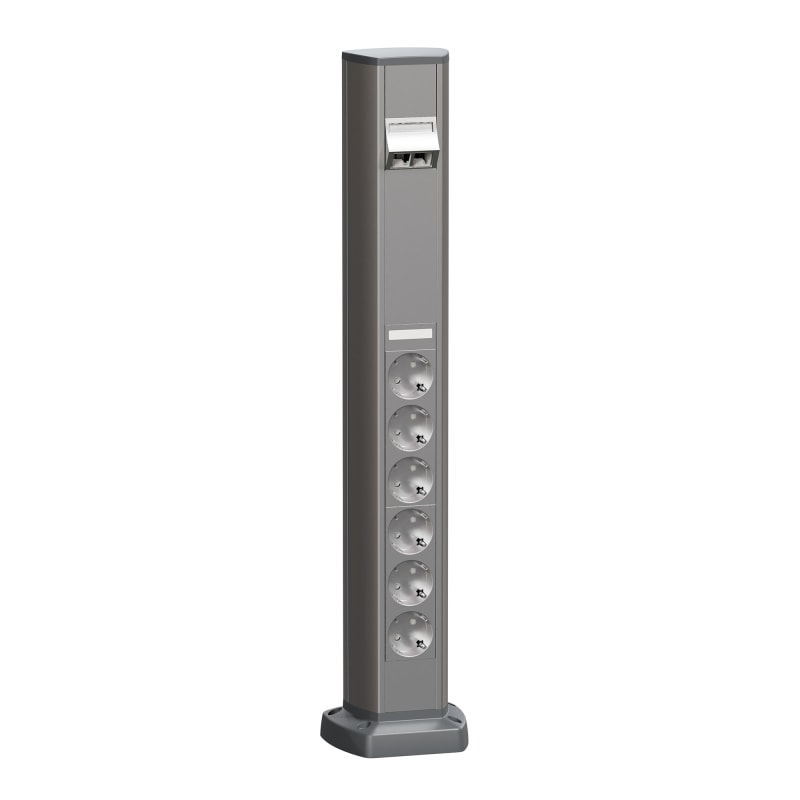

Schneider Electric OptiLine 45 - Post - One-Sided with CAT6 UTP - Anodized - 600 mm ISM22201
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM22201 OptiLine 45 - single-sided outlet post, 6 power outlets, 2xC6 UTP, anodized.
Technical Specifications
- Manufacturer part number (MPN)
- ISM22201
- EAN / GTIN
- 3606489821135
- Sales unit
- pcs
- Range of product
- OptiLine 45
- Product type
- Post
- Type of post
- One-sided
- Pole/post surface finish
- Anodized
- Mounting mode
- Free standing
- Device composition
- 2 x RJ45 connector, communication network category: 6, cable shielding type: UTP, 2 modules; 6 x socket-outlet, outlet standard: German, 2 modules
- Fixing mode
- Screw-fixed
- Front opening size
- 45 mm
- Material
- Aluminium anodized
- Quantity package 1 / unit
- 1
- Height
- 600 mm
- Width
- 68 mm
- Market segment
- Residential; Commercial; Office
- Depth
- 89 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Warranty (in months)
- 18
- Pillar shape
- Rectangular
- Model
- Single-sided
- Pre-wired
- Yes
- Adjustable
- Yes
- Column depth
- 68 mm
- Column width
- 89 mm
- Number of usable covers
- 3
- Cover width
- 45 mm
- Cover depth
- 90 mm
- Type of fastening
- Screwing
- Place variable
- Yes
- Ceiling mounting
- No
- Cable entry
- Bottom
- Through-going profile
- Yes
- Material installation column
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489821135
- SAP 1200517686
- Code 82656075
