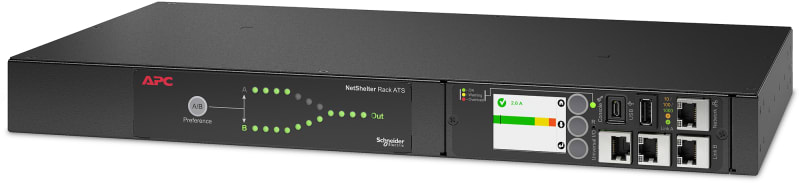

Schneider Electric APC Netshelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 IEC309 IN, 1 IEC309 OUT, 50/60Hz AP4422A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AP4422A APC Automatic Transfer Switch, 1U, 16A, 230V, 2 IEC309 IN, 1 IEC309 OUT, 50/60Hz.
Technical Specifications
- Manufacturer part number (MPN)
- AP4422A
- EAN / GTIN
- 0731304432432
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Main Input Voltage
- 230 V AC 1 phase
- Product or component type
- Automatic transfer switch
- Main Output Voltage
- 230 V AC 1 phase
- Input Connection Type
- IEC 60309 16 A 2P + E
- Number of rack unit
- 1U
- Cable length
- 2.43 m
- Number of cables
- 2
- Provided equipment
- Mounting hardware; Rack mounting brackets
- Colour
- Black
- Height
- 44 mm
- Width
- 432 mm
- Depth
- 236 mm
- Product weight
- 4.21 kg
- Mounting location
- Front
- Mounting preference
- No preference
- mounting mode
- Rack-mounted
- Mounting position
- Horizontal
- Network frequency
- 50/60 Hz
- [In] rated current
- 16 A
- permissible voltage
- 207…253 V
- Max line current
- 16 A
- Input current limits
- 16 A
- Load capacity
- 3840 VA
- Number of power socket outlets
- 1 IEC 60309 16 A 2P + E
- Protection type
- Without circuit breaker
- Power cable length
- 0.91 m
- Product certifications
- CE; EMC directive 2004/108/EC; LVD directive 2006/95/EC
- Standards
- EN/IEC 60950-1; UL 60950-1
- Ambient air temperature for operation
- -5…45 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -25…65 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0…15240 m
- Country of origin
- PH
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0731304432432
- SAP 1200648517
- Code 83065970
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 25A, C curve, 6000A/6KA, A-SI type, 30MA A9D77425
Schneider Electric
Schneider Electric Easy UPS 1 Ph Line Interactive, 3KVA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, without Network Card support SMVS3000CAI
Schneider Electric
Schneider Electric APC Easy UPS On-Line 6 kVA/6 kW Tower SRV6KI
Schneider Electric
VIGI IC60 2P 63A 300MS SI
A9W35263
Schneider Electric
Robust USB A+C outlet 45W White
WDE000942
Schneider Electric

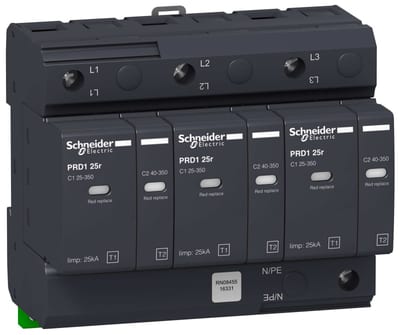

Schneider Electric PRD1 25R modular surge arrester - 3 poles - 350V - with remote transfer
16331
Schneider Electric

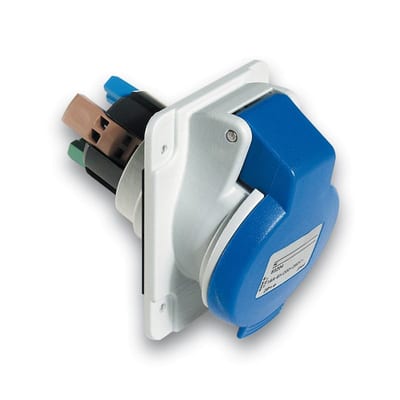

Schneider Electric PratiKa socket - fast - angled - 32A - 3P + E - 200...250 V AC - panel PKY32F424
Schneider Electric

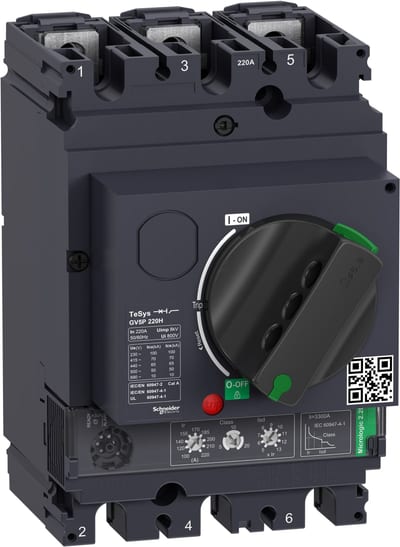

Schneider Electric Motor circuit breaker, TeSys GV5, 3P, 220A, Icu 70KA, thermal magnetic GV5P220H
