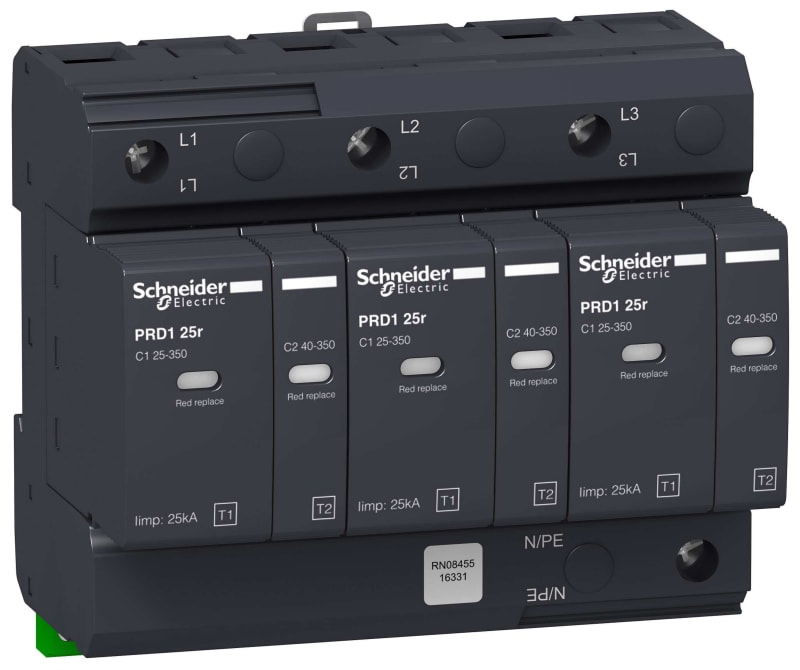

Schneider Electric PRD1 25R modular surge arrester - 3 poles - 350V - with remote transfer

Schneider Electric 16331 Surge protection device Type 1 25kA 3P 350V.

Manufacturer part number (MPN)

16331

EAN / GTIN

3606480060410

Sales unit

pcs

Package quantity

7 pcs

Range of product

PRD1

Product name

Acti9 PRD1

Product or component type

Surge arrester with pluggable cartridge

Device short name

PRD1 25r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Quality labels

KEMA-KEUR

Poles description

3P

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-C

Surge arrester class type

Type 1 + 2

Surge arrester technology

MOV; Spark gap

[Ue] rated operational voltage

400 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 25 kA (L/PE)

Maximum discharge current

Common mode: 40 kA L/PE

[Iimp] impulse current

Common mode: 25 kA L/PE 12.5 A.s

[Uc] maximum continuous operating voltage

Common mode: 350 V L/PE

Maximum [Up] voltage protection level

Common mode <1.5 kV type 2 L/PE

[Out] temporary overvoltage

1200 V N/PE 200 ms withstand; 415 V L/N 5 s withstand; 440 V L/N 7200 s safe failure mode

[Ifi] follow current

25 kA differential mode L/N; 3 kA differential mode L/N; 100 A common mode N/PE

Short-circuit withstand

25 kA

Disconnector device type

Associated fuse gG 315 A up to Isc = 25 kA; Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA; Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA; Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA

Signalling circuit voltage

1 A/250 V AC; 1 A/30 V DC

Mounting mode

Clip-on (DIN rail)

9 mm pitches

12

Height

90 mm

Width

108 mm

Depth

71 mm

Product weight

1010 g

Colour

Anthracite grey (RAL 7016)

Material

PBT (polybutylene terephthalate)

Connections - terminals

Tunnel type terminal (top or bottom) 10…35 mm² rigid; Tunnel type terminal (top or bottom) 10…25 mm² flexible

Tightening torque

4.5 N.m

Impulse current

25 kA

Compatibility code

PRD1_25r

Market segment

Small commercial

IK degree of protection

IK05 conforming to IEC 62262

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.000 cm

Package 1 Width

14.000 cm

Package 1 Length

18.000 cm

Package 1 Weight

977.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

7

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

7.930 kg

Country of origin

DE

Warranty (in months)

18

System configuration

TN-C

System configuration DC

No

System configuration IT

Yes

System configuration TN

No

System configuration TN-C

Yes

System configuration TT

No

System configuration other

No

Number of conductors (without earthing)

3

Nominal discharge surge current (8/20)

25 kA

Max. discharge surge current (8/20)

40 kA

Short-circuit-proof

No

Nominal voltage AC

400 V

Max. continuous voltage AC

350 V

Voltage protection level

1.5 kV

Voltage protection level L-N

1.5 kV

Voltage protection level N-PE

1.5 kV

Short-circuit breaking capacity (Isccr)

25 kA

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

6 modular spacing

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

35 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20
