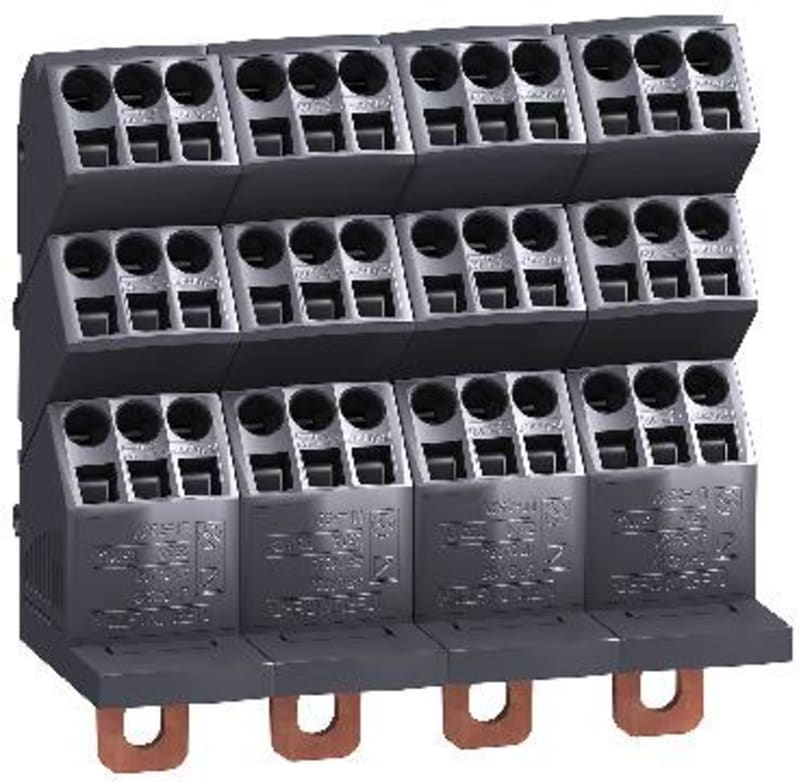

Linergy DP(Polyblock) 250A 4P-36 HOLES G/P

Schneider Electric LVS04034 Linergy DP(Polyblock)-fordelingsblokk for DIN rail-250A 4P-36 holes for PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04034

EAN / GTIN

3606481870889

Sales unit

pcs

Package quantity

10 pcs

Rated current

250 A

Number of poles

4P

Range

Linergy

Range of product

Linergy

Product or component type

Distribution block

Product name

Linergy DP

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure

Accessory / separate part category

Current distribution accessory

IP degree of protection

IPxx B

Mounting support

Mounting plate; DIN rail

Installed device

EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 - control: lateral handle - vertical installation; ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV100 - control: direct front rotary handle - vertical installation; ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV160 - control: direct front rotary handle - vertical installation; ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV200 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV250 - control: lateral handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX100...250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - vertical installation

Poles description

4P

[Ue] rated operational voltage

690 V AC

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

250 A at 40 °C

[Icw] rated short-time withstand current

8.5 kA for 1 s

[Ipk] rated peak withstand current

30 kA

I²t on activation

72250000 A².s

Connections - terminals

Supply: direct connection120 mm²; Distribution: spring terminal (phase) , 6 x 4…10 mm² (flexible) ; Distribution: spring terminal (phase) , 3 x 6…16 mm² (flexible) ; Distribution: spring terminal (phase) , 6 x 4…10 mm² (rigid) ; Distribution: spring terminal (phase) , 3 x 6…16 mm² (rigid)

Height

140 mm

Width

140 mm

Depth

64 mm

Product weight

0.96 kg

Colour

Anthracite grey (RAL 7016)

Pollution degree

3

Overvoltage category

III

Resistance to incandescent wire

960 °C conforming to IEC 60695-2-11

Standards

IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure

Product certifications

ASTA

Ambient air temperature for operation

-25…55 °C

Warranty (in months)

18

Nominal current

250 A

Mounting method

DIN rail

Connection type

Without screws

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

No

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

Country of origin

Poland

HS Code

8536.90
