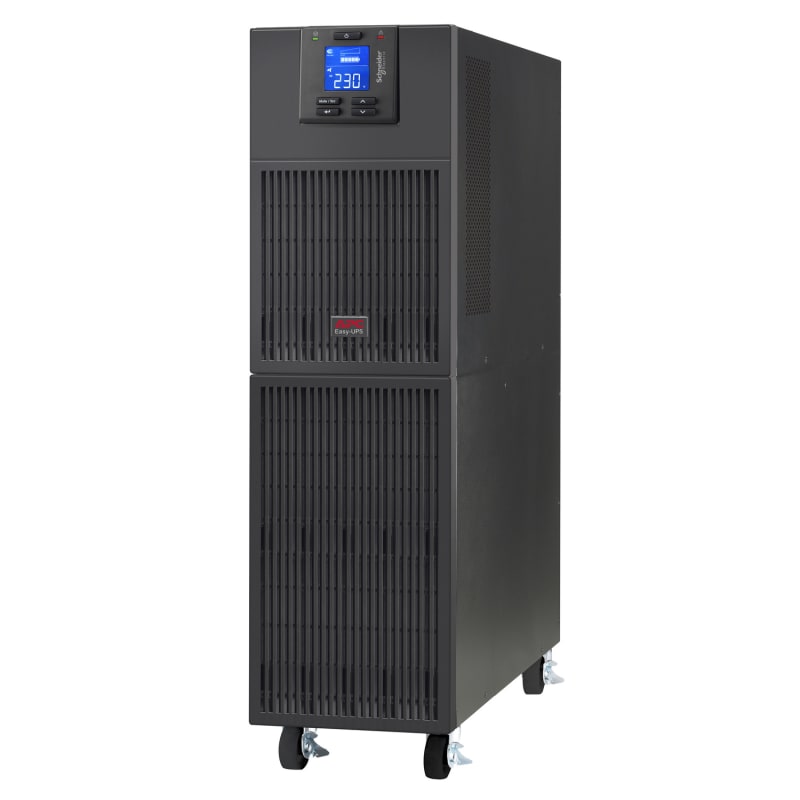

Schneider Electric APC Easy UPS On-Line 6 kVA/6 kW Tower SRV6KI
Pricing
Request a quote
We reply within 24 hours
Product Description
The APC Easy UPS On-Line SRV6KI is a 6 kVA/6 kW single-phase 230 V double-conversion tower UPS with hard-wired 3-wire (1P+N+E) input and output. It delivers a sine-wave output with 94% efficiency at full load, an internal automatic and manual bypass, a multifunction LCD control panel, and an intelligent card slot for network management. Typical applications include small server rooms, network cabinets, medical devices, and industrial control loads that require conditioned power and seamless battery transfer.
Technical Specifications
- Manufacturer part number (MPN)
- SRV6KI
- EAN / GTIN
- 0731304338017
- Sales unit
- pcs
- Voltage
- 230 V
- Presentation
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
- Main input voltage
- 230 V AC 1 phase
- Other input voltage
- 220 V; 240 V
- Efficiency at full load
- 110...300 V 60 % load; 176...300 V full load
- Input connection
- 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto sensing
- Output voltage
- 230 V AC 1 phase
- Other output voltage
- 220 V; 240 V
- Rated power in W
- 6000 W
- Rated power in VA
- 6000 VA
- Output connection
- Hard wire 3-wire (1P + N + E) for 1 zone(s)
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- 1 %
- Maximum configurable power in VA
- 6000 VA
- Maximum configurable power in W
- 6000 W
- UPS topology
- On-Line
- Waveform type
- Sine wave
- Efficiency
- 94 % (full load)
- Output frequency
- 50/60 Hz +/- 3 Hz sync to mains
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid internal included
- Control panel
- Multifunction LCD status and control console
- Emergency power off
- Yes
- Free slot
- 1
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Available expansion slot
- Surge energy rating
- 600 J
- Color
- Black (RAL 7010)
- Height
- 685 mm
- Width
- 190 mm
- Depth
- 374 mm
- Product weight
- 54 kg
- Mounting location
- Front
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Mounting position
- Vertical
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Easy UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; EAC; TISI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…60 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 55 dBA
- Heat dissipation
- 1172 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- 192 V
- Extendable runtime
- 0
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- Battery life
- 3…5 year(s)
- Battery charging power
- 235 W rated
- Battery power in VAh
- 1124 VAh runtime
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 91.000 cm
- Package 1 Width
- 29.000 cm
- Package 1 Length
- 49.500 cm
- Package 1 Weight
- 65.862 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 8
- Package 2 Height
- 110.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 526.896 kg
- Country of origin
- CN
- Warranty (in months)
- 24
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304338017
- SAP 1200598463
- Code 82998429
Product Documentation
More from Schneider Electric
Schneider Electric
VIGI IC60 2P 63A 300MS SI
A9W35263
Schneider Electric
Robust USB A+C outlet 45W White
WDE000942
Schneider Electric
Schneider Electric PRD1 25R modular surge arrester - 3 poles - 350V - with remote transfer
16331
Schneider Electric
Schneider Electric PratiKa socket - fast - angled - 32A - 3P + E - 200...250 V AC - panel PKY32F424
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV5, 3P, 220A, Icu 70KA, thermal magnetic GV5P220H
Schneider Electric

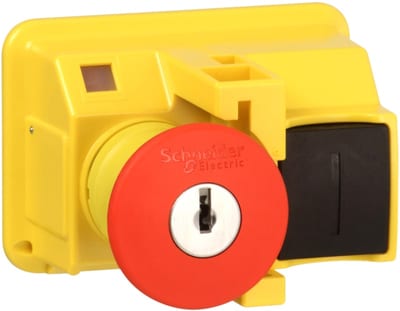

Schneider Electric TeSys GV2 - Emergency stop pushbutton - latching - key release GV2K021
Schneider Electric

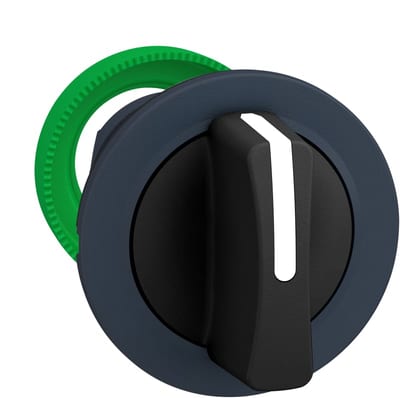

Schneider Electric flush mounted black selector switch head 3 pos return left to center ZB5FD7
Schneider Electric

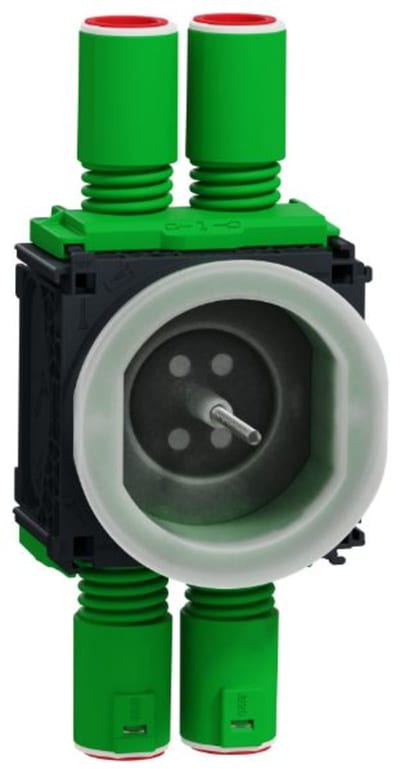

Schneider Multifix 1M 32 mm Concrete Wall Box, 4 Nozzles
