Basefront 200X600 (NSYSPF6200)
Pricing
Request a quote
We reply within 24 hours
Product Description

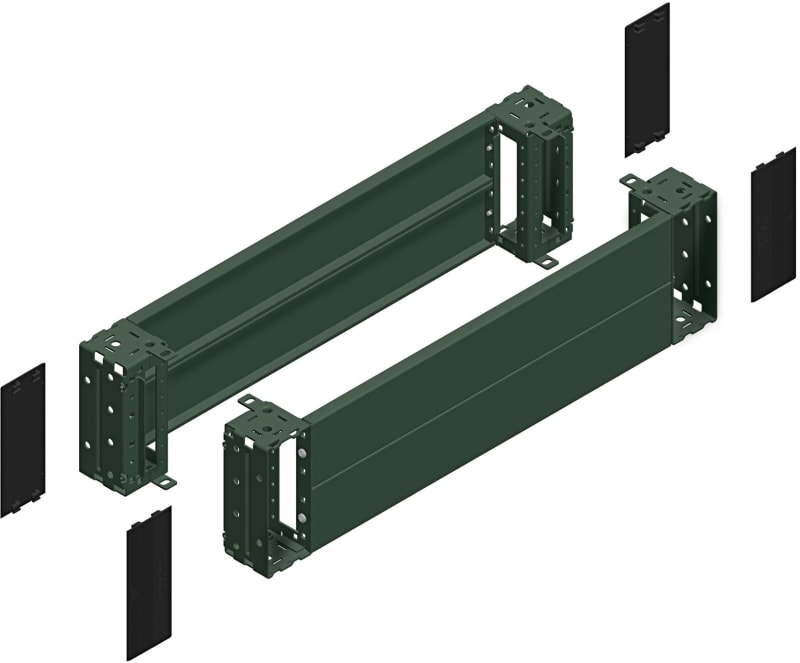

Schneider Electric NSYSPF6200 Plinth Front 200x600 for Spacial.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPF6200
- EAN / GTIN
- 3606485126678
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Front and rear plinth
- Application
- PC application; Electronic application; Multi-purpose; Compartmentalised application
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 4 corner; 2 front panel; 2 rear panel
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT S3D; PanelSeT CRN; PanelSeT SFN
- Mounting support
- Plinth side panels
- Fixing mode
- By fixing element - on structure location
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Permanent permissible load
- 1300 kg
- Height
- 200 mm
- Width
- Nominal: 600 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 20.500 cm
- Package 1 Width
- 20.500 cm
- Package 1 Length
- 62.000 cm
- Package 1 Weight
- 7.500 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 32
- Package 2 Height
- 97.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 123.500 cm
- Package 2 Weight
- 268.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base front/back
- Depth
- 600 mm
- Max. load capacity
- 1300 kg
- Suitable for enclosure building width
- 600 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126678
- SAP 1000317652
- Code 8823090
