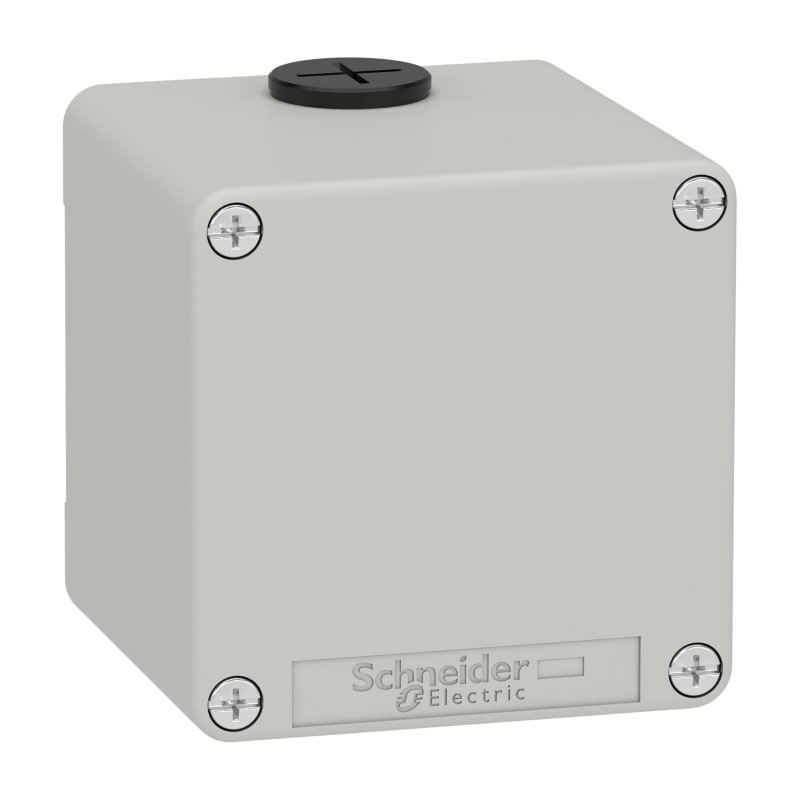

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, undrilled, 80 x 80 x 77, UL cULus XAPD14

Schneider Electric XAPD14 Push-Button Station empty in light grey metal without hole and 2 x M20 cable glands 80 x 80 x 77 mm.

Manufacturer part number (MPN)

XAPD14

EAN / GTIN

3389118039797

Sales unit

pcs

Range of product

Harmony XAP

Product or component type

Die-cast empty control station

Device short name

XAPD

Product destination

For Ø 22 mm control and signalling units

Product front plate size

80 x 80 mm

Usable depth

74.5 mm

Number of cut-out

Without cut-out

Colour of base of enclosure

Grey (RAL 7035)

Colour of cover

Grey (RAL 7035)

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Number of vertical rows

0

Number of horizontal rows

0

Control station type

Metal

Cable entry

2 x cable gland conforming to ISO

Thread type

M20 x 1.5

CAD overall width

80 mm

CAD overall height

80 mm

CAD overall depth

77 mm

Product weight

0.605 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

Degree of protection

UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E

IK degree of protection

IK07 conforming to IEC 62262

Resistance to chemical agents

Special treatment can be obtained on request

Product certifications

UL; cULus; EAC

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.000 cm

Package 1 Width

9.000 cm

Package 1 Length

9.000 cm

Package 1 Weight

789.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

12

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

9.720 kg

Country of origin

MA

Warranty (in months)

18

Width

80 mm

Height

80 mm

Depth

77 mm

Colour housing cover

Grey

Housing material

Zinc

Construction type housing

Surface mounted housing

HS Code

7907.00

• EAN 3389118039797
• SAP 1200584834
• Code 82953581
