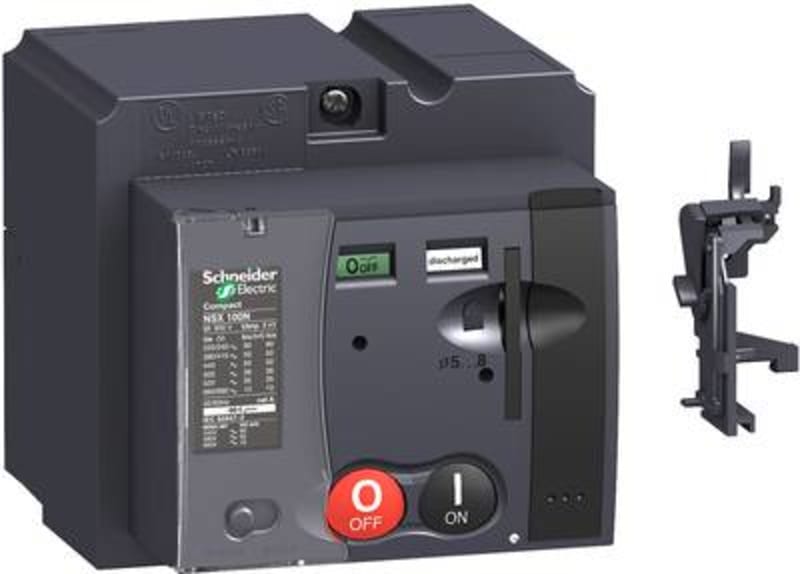

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 250 VDC LV429439
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429439 Motor mechanism. 250VDC NSX100/160.
Technical Specifications
- Manufacturer part number (MPN)
- LV429439
- EAN / GTIN
- 3606480020056
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Voltage
- 250 V DC
- Device short name
- MT250
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC
- Control type
- Standard
- [Uc] control circuit voltage
- 250 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 100 A; 160 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in W
- 500 W - closing; 500 W - opening
- Provided equipment
- SDE adaptor
- Locking options description
- 1 to 3 padlocks Ø 5 to Ø 8; Padlocking in OFF position
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage DC
- 250 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8501.20
Cross References
- EAN 3606480020056
- SAP 1000092323
- Code 8859734
