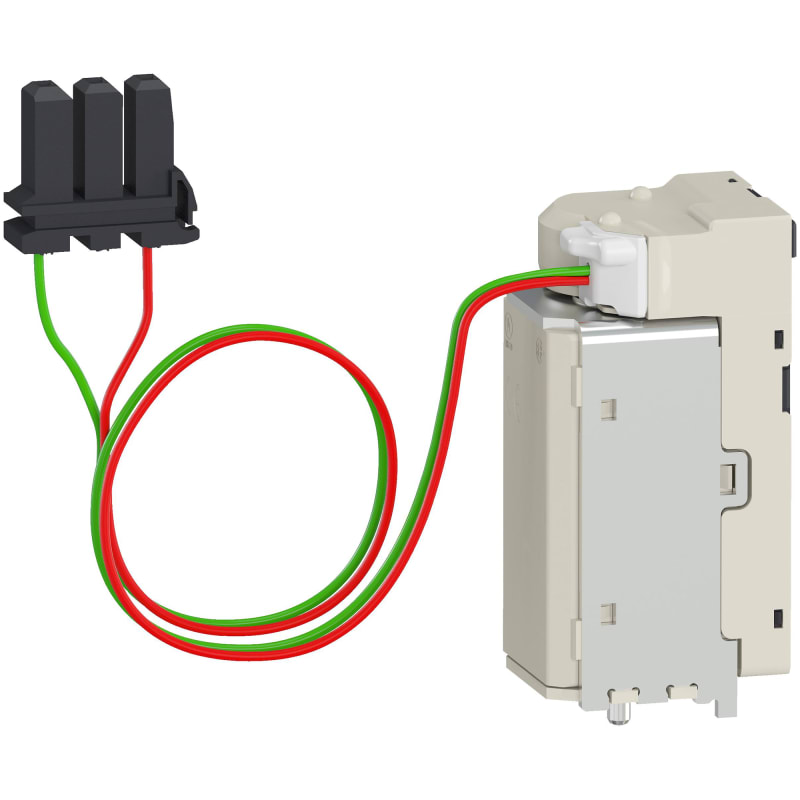

COIL MX2 24/30VDC 24VAC - Drawout MTZ1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV847450 Utspole nr2, MX2 24/30VDC 24VAC for Masterpact circuit breaker MTZ1 withdrawable.
Technical Specifications
- Manufacturer part number (MPN)
- LV847450
- EAN / GTIN
- 3606480813283
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 24 V AC
- Range
- MasterPact
- Device short name
- second MX
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit-breaker
- Voltage release type
- Shunt trip release
- Control type
- Standard
- [Un] voltage power supply
- 24...30 V DC; 24 V AC 50/60 Hz
- Threshold tripping voltage
- 0.7...1.1 Un on opening
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Drawout
- Maximum response time
- 60 ms on opening for MasterPact MTZ1
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480813283
- SAP 1200498170
- Code 82621790
Product Documentation
