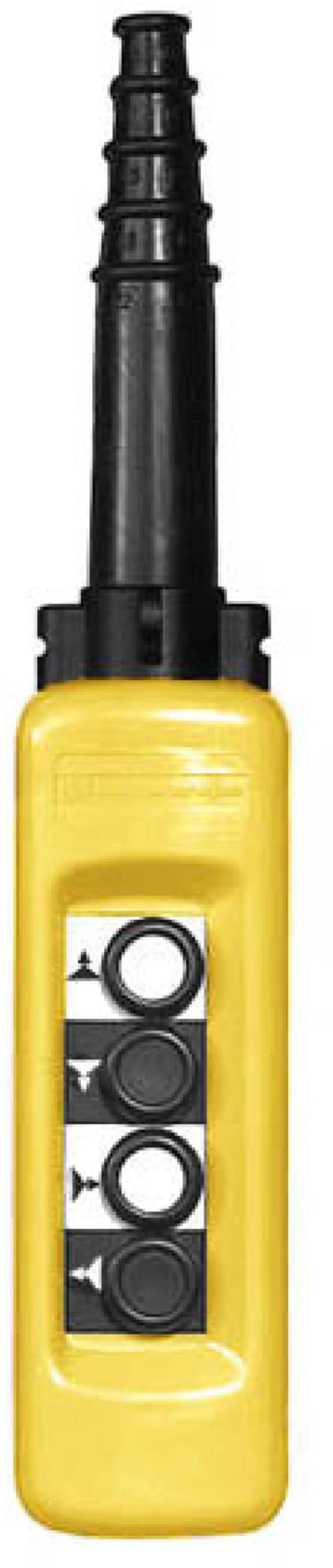

Schneider Electric XACA491 Harmony XAC Pendant Control Station 4 Buttons

Schneider Electric XACA491 Harmony XAC pendant control station in polypropylene, configured with four push-buttons for two-speed hoist control (raise, lower, left, right; 1 NC + 2 NO each). Double-insulated construction with mechanical interlocking between opposing pairs; IP65 / IK08, screw-clamp terminals accept 0.5-2.5 mm² conductors.

Manufacturer part number (MPN)

XACA491

EAN / GTIN

3389110325768

Sales unit

pcs

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACA

Control station type

Double insulated

Enclosure material

Polypropylene

Electrical circuit type

Control circuit

enclosure type

Complete ready for use

Control station application

Control of 2-speed hoist motor

Control station composition

4 push-buttons

Control button type

First push-button 1 NC + 2 NO raise, slow-fast; Second push-button 1 NC + 2 NO lower, slow-fast; Fourth push-button 1 NC + 2 NO left, slow-fast; Third push-button 1 NC + 2 NO right, slow-fast

Product compatibility

XENG1191 for each direction

Mechanical interlocking

With mechanical interlocking between pairs

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Standards

UL 508; IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14

Product certifications

GOST; CCC

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 8…26 mm

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3)

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Slow-break; Staggered

Maximum resistance across terminals

25 MOhm

Operating force

18 N push-button

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(21-22)NC; (33-34)NO_CL; (13-14)NO

Terminal identifier

(13-14)NO; (11-12)NC

Product weight

0.625 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.500 cm

Package 1 Width

9.000 cm

Package 1 Length

44.500 cm

Package 1 Weight

825.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

12

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

10.550 kg

Unit Type of Package 3

P06

Number of Units in Package 3

48

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

50.200 kg

Country of origin

CZ

Warranty (in months)

18

Width

80 mm

Height

250 mm

Depth

70 mm

Number of command positions

4

Colour housing cover

Yellow

Suitable for emergency stop

No

Housing material

Plastic

Number of speeds

2

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Rated operation current Ie at AC-15, 600 V

1.2 A

HS Code

8537.10
