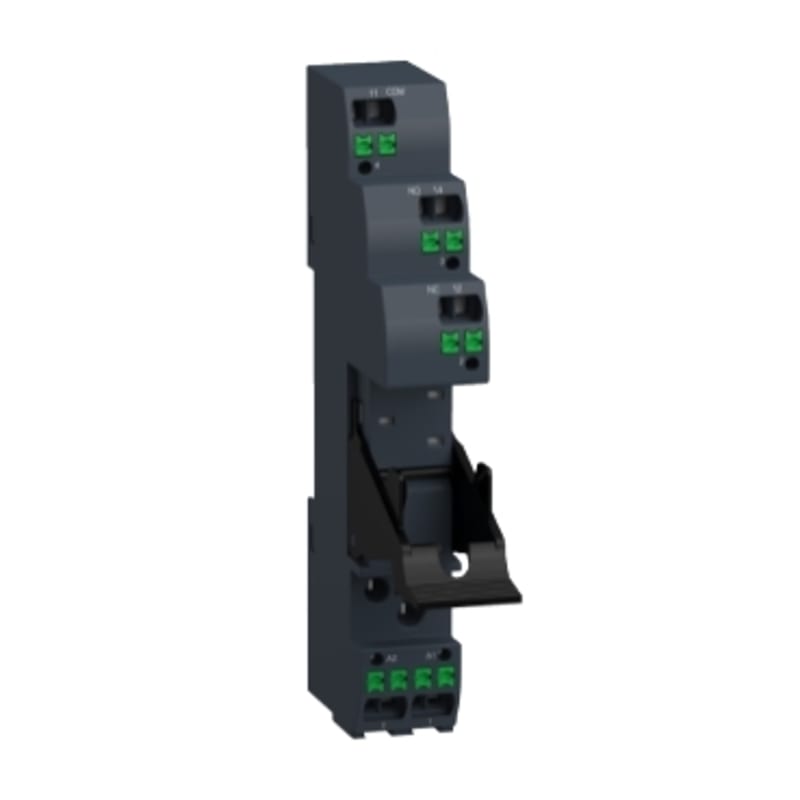

Plinth for RSB1 relay push-in

Schneider Electric RSZE05P Zelio plinth with push-in spring terminals for RSB relayer with 1 connector.

Manufacturer part number (MPN)

RSZE05P

EAN / GTIN

3606481465733

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RSZ

Product or component type

Socket

Product compatibility

Plug-in relay RSB with 1 C/O contact at 12 A

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

12 A

[Ui] rated insulation voltage

250 V

Shape of pin

Flat

[Ue] rated operational voltage

250 V conforming to IEC; 300 V conforming to UL

Contact terminal arrangement

Separate

Connections - terminals

Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) flexible with cable end; Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Fixing mode

Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Length

98 mm

Width

16 mm

Height

60 mm

Product weight

0.037 kg

IP degree of protection

IP20

Standards

IEC 61984

Product certifications

CSA; UL; EAC

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

160

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481465733
• SAP 1200464255
• Code 82524905
