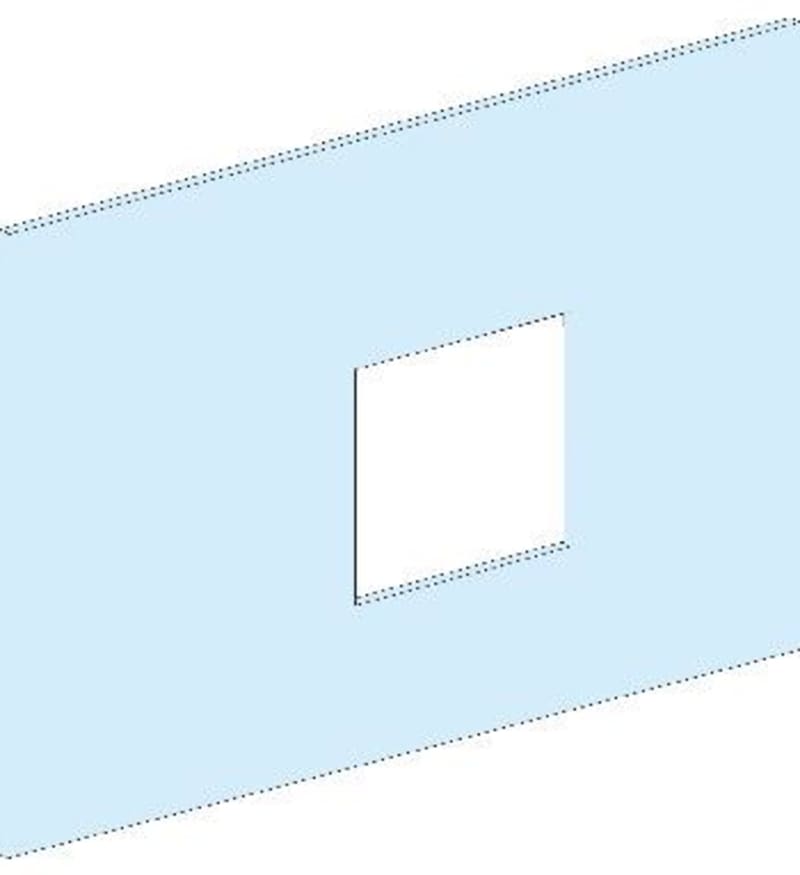

Front plate NSX630VIGI vertical Prisma G/P
Part numberLVS03297EAN / GTIN3606481873453HS code7326.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03297 Front plate for NSX400/630 with Vigimodul-Vertical mounting-PrismaSeT G/P-9 modules-for 600/650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03297
- EAN / GTIN
- 3606481873453
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX400 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS400 with earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism - vertical installation
- Poles description
- 1 x 4P: mounting plate support: NSX400 vertical installation; 1 x 3P: mounting plate support: CVS400 vertical installation; 1 x 4P: mounting plate support: CVS400 vertical installation; 1 x 3P: mounting plate support: CVS630 vertical installation; 1 x 4P: mounting plate support: CVS630 vertical installation; 1 x 3P: mounting plate support: NSX400 vertical installation; 1 x 3P: mounting plate support: NSX630 vertical installation; 1 x 4P: mounting plate support: NSX630 vertical installation
- Operating position
- Vertical
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm
- Connection position
- Linergy FC; Direct connection
- Number of vertical modules [50 mm]
- 11
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 550 mm
- Product weight
- 2.08 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS400 with fixed direct front rotary handle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS630 with fixed direct front rotary handle vertical 4P 1 direct 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct 13; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with plug-in direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 3P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism vertical 4P 1 direct 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in toggle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed direct front rotary handle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with plug-in direct front rotary handle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle vertical 4P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 3P 1 direct 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism vertical 4P 1 direct 15; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS400 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS400 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS400 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS400 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS630 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS630 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure EasyPact CVS630 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure EasyPact CVS630 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed toggle vertical 3P 1 direct with long terminal shield 14; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed toggle vertical 3P 1 direct with long terminal shield 14; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct with long terminal shield 14; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed toggle vertical 4P 1 direct with long terminal shield 14; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX400 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX400 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 with fixed toggle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 with fixed toggle vertical 3P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 with fixed toggle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 with fixed toggle vertical 4P 1 direct with long terminal shield 15; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 with fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 18; 600 mm PrismaSeT G floor-standing enclosure ComPact NSX630 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18; 600 mm PrismaSeT G wall-mounted enclosure ComPact NSX630 with fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 18
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 48
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 9
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873453
- SAP 1200546653
- Code 82880776
Product Documentation
Document preview: Schneider Electric LVS03297 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric ABS industrial box, PanelSeT TBS, 194X107X241MM, int. 175X100X225MM, low transparent cover, IP66, IK07, RAL 7035 NSYTBS241910T
Schneider Electric
Schneider Electric Advanced control unit, TeSys U, 8-32A, 1P motors, protection & diagnostic, class 10, coil 24V DC LUCC32BL
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2000X1000X600
NSYSFN201060P
Schneider Electric
Schneider Electric power connections, ComPact NSX400/630 plug-in kit with Vigi add-on, set of 2 parts LV432519
Schneider Electric
Mounting Bracket for flate rails MTZ2
LVS04690
Schneider Electric
Forriglingssett for 2 Switches with Dreieh
33890
Schneider Electric
ISFL250-630 CT600/5-KL 1-5VA
LV480888
Schneider Electric

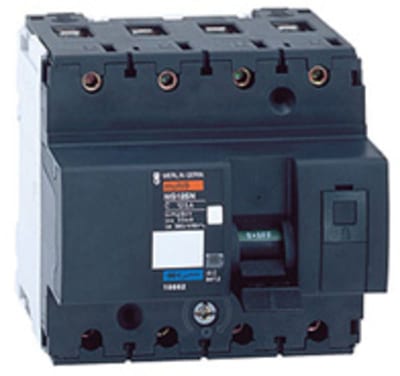

NG125N/B 100-4 Modular Power Switch
