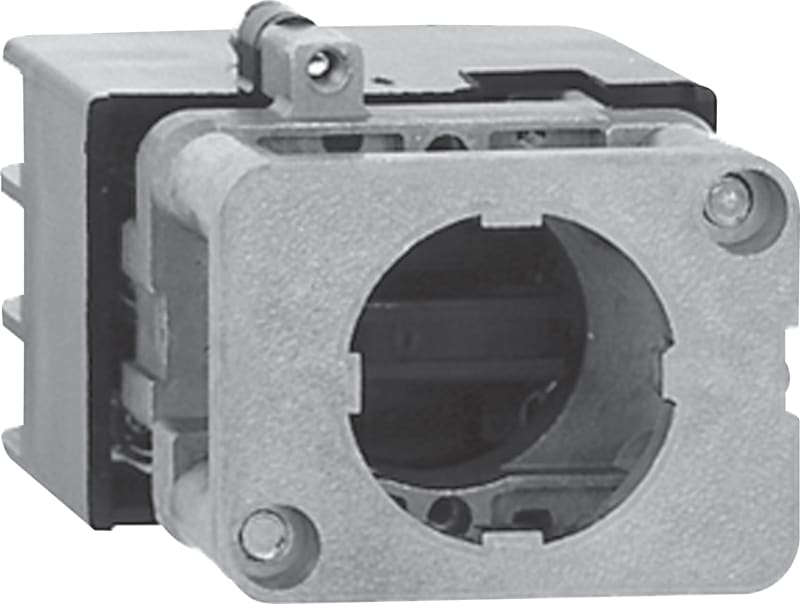

Contact Block for FRONTMON.3NC

Schneider Electric XACS399 Suspended enclosure, accessories for XAC-B.

Manufacturer part number (MPN)

XACS399

EAN / GTIN

3389110647457

Sales unit

pcs

Package quantity

50 pcs

Range of product

Harmony XAC

Product or component type

Isolating block

Component name

XACS

Electrical circuit type

Power circuit

Contact block application

Emergency stop push-button

Contact block type

Single

Product compatibility

XACB

Contacts type and composition

3 NC

Mounting of block

Front mounting

Contact operation

Snap action

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Horizontal fixing centres

40 mm

Mechanical durability

1000000 cycles

Contact code designation

A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

400 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Rated operational power in W

3000 W AC-23B at 400 V

Product weight

0.1 kg

Standards

IEC 60947-3; IEC 60947-3; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

Number of Units in Package 1

1

Number of Units in Package 2

50

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
