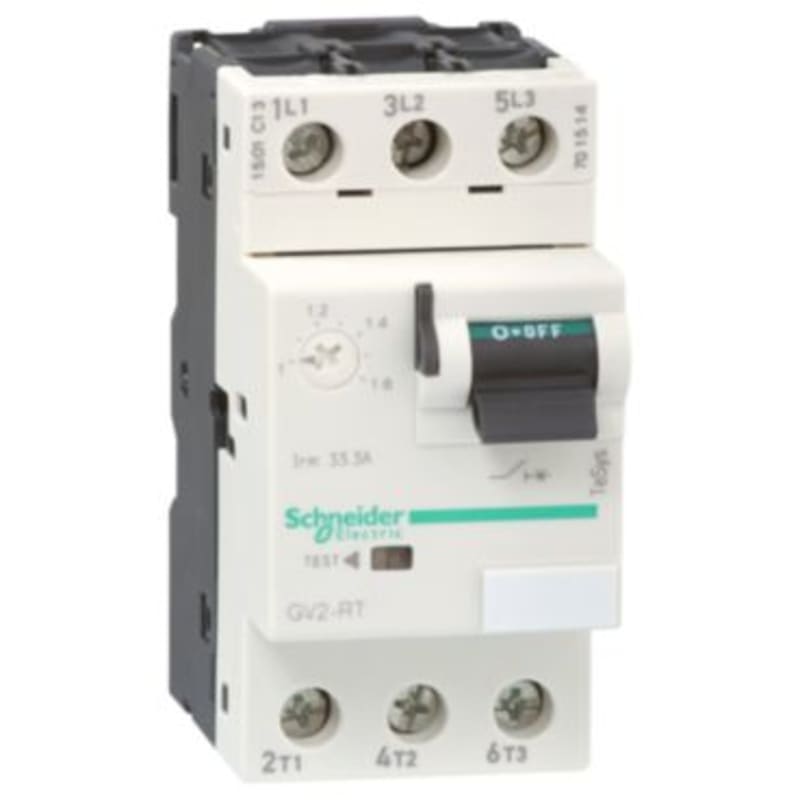

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 17-23 A, thermal magnetic, screw clamp terminals GV2RT21

Schneider Electric GV2RT21 — TeSys motor protection circuit breaker. Manual motor starter with thermal and magnetic protection. Motor protection MG/TRM 17-23A.

Manufacturer part number (MPN)

GV2RT21

EAN / GTIN

3389110520729

Sales unit

pcs

Package quantity

24 pcs

Setting range

17-23 A

Range

TeSys Deca

Product name

TeSys GV2

Product or component type

Motor circuit breaker

Device short name

GV2RT

Device application

Motor protection; Transformer

Trip unit technology

Thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

5.5 kW at 220/230 V AC 50/60 Hz motor protection high peak current; 9 kW at 400/415 V AC 50/60 Hz motor protection high peak current; 11 kW at 400/415 V AC 50/60 Hz motor protection high peak current; 11 kW at 440 V AC 50/60 Hz motor protection high peak current; 11 kW at 500 V AC 50/60 Hz motor protection high peak current; 18.5 kW at 690 V AC 50/60 Hz motor protection high peak current

Breaking capacity

50 kA Icu at 220/230 V AC 50/60 Hz conforming to IEC 60947-2; 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Toggle

[In] rated current

23 A

Thermal protection adjustment range

17…23 A conforming to IEC 60947-2

Magnetic tripping current

400 A

[Ith] conventional free air thermal current

23 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Connections - terminals

Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² - solid; Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² - flexible without cable end; Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² - flexible with cable end

Tightening torque

1.7 N.m - on screw clamp terminal

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate)

Mounting position

Horizontal; Vertical

Width

45 mm

Height

89 mm

Depth

78.5 mm

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1

Product certifications

CCC; UL; CSA; EAC; LROS (Lloyds register of shipping); BV; UKCA

IK degree of protection

IK04

IP degree of protection

IP20 conforming to IEC 60529

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz

Operating altitude

<= 2000 m

Number of Units in Package 1

1

Number of Units in Package 2

24

Number of Units in Package 3

288

Country of origin

FR

Warranty (in months)

18

Rated operation power at AC-3, 400 V

11 kW

With integrated auxiliary switch

No

Rated permanent current Iu

23 A

With integrated under voltage release

No

Number of poles

3

Rated operating voltage

690 V

Overload release current setting

17–23 A

Power loss

2.5 W

Degree of protection (IP)

IP20

With thermal overload protection

Yes

Type of electrical connection of main circuit

Screw connection

Type of control element

Rocker lever

Switch off technique

Thermomagnetic

Rated operation power at AC-3, 230 V

5.5 kW

Rated short-circuit breaking capacity Icu at 400 V, AC

15 kA

Adjustment range undelayed short-circuit release

400 A

Phase failure sensitive

Yes

Device construction

Complete device in housing

HS Code

8536.20

• EAN 3389110520729
• SAP 1000051710
• Code 8534969
