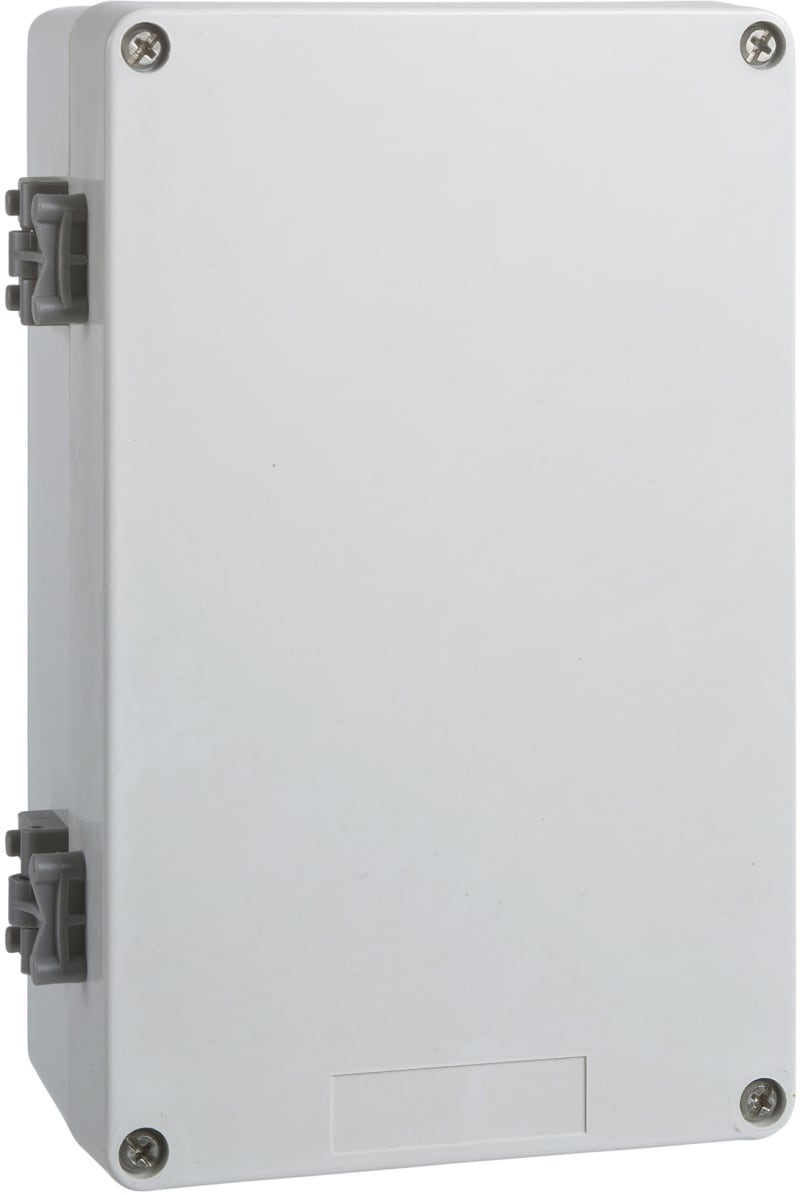

Schneider Electric XAPA3100 empty control station - XAP-A - plastic - without opening
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric XAPA3100 empty control station - XAP-A - plastic - without opening is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 4 pcs; Range of product: Harmony XAP; Product or component type: Empty control station without hinges; Device short name: XAPA; Product front plate size: 151 x 241 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPA3100
- EAN / GTIN
- 3389110313178
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range of product
- Harmony XAP
- Product or component type
- Empty control station without hinges
- Device short name
- XAPA
- Product front plate size
- 151 x 241 mm
- Usable depth
- 83 mm
- Number of cut-out
- Undrilled
- Colour of base of enclosure
- Grey
- Colour of cover
- Grey
- Material
- Glass reinforced polyester
- Cable entry
- Undrilled
- Device mounting
- Flush
- IP degree of protection
- IP65 conforming to IEC 60529; IP69 conforming to NF C 20-010; IP69K
- Resistance to chemical agents
- High resistant to acids; High resistant to all solvents; High resistant to bases; High resistant to diesel; High resistant to mineral salts; High resistant to oils and greases; High resistant to petrol; High resistant to sea water
- Product weight
- 0.86 kg
- Flame retardance
- M3 conforming to CSTB; VO conforming to UL 94
- Protective treatment
- TH; TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class II conforming to IEC 60536; Class II conforming to NF C 20-030
- Fire resistance
- 850 °C conforming to NF C 20-455; 960 °C conforming to IEC 92
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.500 cm
- Package 1 Width
- 17.000 cm
- Package 1 Length
- 25.000 cm
- Package 1 Weight
- 1.024 kg
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 4
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.580 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 32
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 48.316 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 151 mm
- Height
- 246 mm
- Depth
- 87 mm
- Colour housing cover
- Grey
- Housing material
- Plastic
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP65/IP67
- Housing material quality
- Acrylonitrile butadiene styrene (ABS)
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110313178
- SAP 1000041582
- Code 8755083
