LED lamp 12mm 24V RED
Pricing
Request a quote
We reply within 24 hours
Product Description

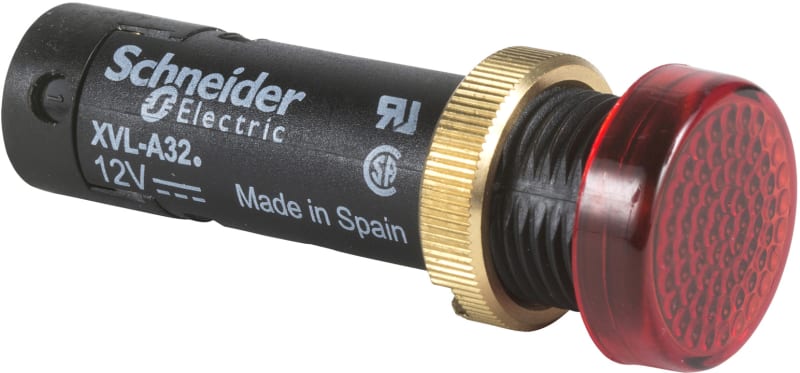

Schneider Electric XVLA334 LED lamp 12mm 24V Red.
Technical Specifications
- Manufacturer part number (MPN)
- XVLA334
- EAN / GTIN
- 3389110651683
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 24 V
- Range of product
- Harmony XVL
- Product or component type
- LED pilot light with integral lens cap
- Component name
- XVL
- Mounting diameter
- 12 mm
- Light source
- Covered LED
- Light block colour
- Red
- Protection type
- Built-in by diode; Integral ballast resistor
- [Us] rated supply voltage
- 24 V
- IP degree of protection
- IP65 (with seal XVLZ912) conforming to IEC 60529; IP65 (with seal XVLZ912) conforming to NF C 20-010; IP40 conforming to IEC 60529; IP40 conforming to NF C 20-010
- Sale per indivisible quantity
- 10
- Supply circuit type
- DC
- Connections - terminals
- Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm²
- Current consumption
- 18 mA
- [Ui] rated insulation voltage
- 50 V conforming to IEC 60947-1
- Bulb lifespan
- 100000 h
- Nominal voltage limit
- 0.8...1.1 Un
- Terminals description ISO n°1
- (X1-X2)PL
- Height
- 16 mm
- Width
- 16 mm
- Depth
- 51 mm
- Product weight
- 0.007 kg
- Product certifications
- UL; CSA
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Overvoltage category
- Class 3 conforming to IEC 60536; Class 3 conforming to NF C 20-030
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- ES
- Warranty (in months)
- 18
- Hole diameter
- 12 mm
- Voltage type
- DC
- Colour lens
- Red
- Number of indicator lights
- 1
- Rated operating voltage Ue
- 24 V
- Colour front ring
- Black
- Type of electric connection
- Flat plug-in connection
- Degree of protection (IP)
- IP40
- With light source
- Yes
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of lamp socket
- LED
- Type of lens
- Flat
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110651683
- SAP 1000017546
- Code 8489003
Product Documentation
More from Schneider Electric
Schneider Electric
Robust WALL-Mounted Cover 1 Insert
WDE000915
Schneider Electric
Schneider Electric OptiLine End Piece 12x20mm PC/ABS White
ISM14104P
Schneider Electric
Schneider Electric Trip unit MicroLogic 2.3, ComPacT NSX630, 4 poles, electronic basic protections, 630A rating C6342D630
Schneider Electric
Modbus Cable 2 X RJ45 1M
VW3A8306R10
Schneider Electric
Schneider Electric Ethernet/IP, ModbusTCP communication module - 2RJ45 VW3A3720
Schneider Electric
Schneider Electric Multifix Cast-In Mount with Short Nail
IMT80313
Schneider Electric
Schneider Electric undervoltage release (spring) MN - 208...240 V AC 60Hz - 220…240 50Hz LV426804
Schneider Electric
Mounting Plate Metal 200X200
NSYMM22SB
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XVLA334?
- XVLA334 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is XVLA334.
- What is the HS code for XVLA334?
- The customs tariff (HS) code for XVLA334 is 8531.80.
- Who manufactures XVLA334?
- XVLA334 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for XVLA334?
- Yes — the XVLA334 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XVLA334?
- The minimum order quantity is 1.
- Is XVLA334 available?
- Yes — XVLA334 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
