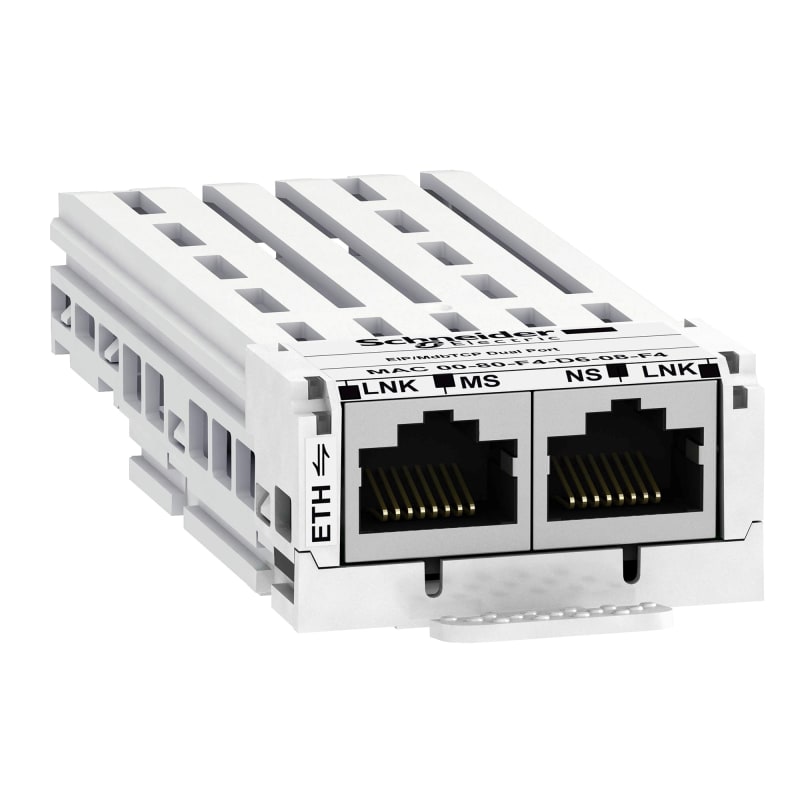

Schneider Electric Ethernet/IP, ModbusTCP communication module - 2RJ45 VW3A3720
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3720 — Ethernet/IP, ModbusTCP communication module - 2RJ45.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3720
- EAN / GTIN
- 3606480702549
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Range compatibility
- Altivar Process ATV600; Altivar Process Modular
- Communication port protocol
- Modbus TCP; EtherNet/IP
- Electrical connection
- 2 connectors RJ45, Ethernet IP/Modbus TCP
- Transmission rate
- 10/100 Mbps
- Exchange mode
- Half duplex and full duplex
- Communication service
- SNMP agent for Ethernet IP; Modbus TCP server for Ethernet IP/Modbus TCP; Ethernet/IP adapter for Ethernet IP; RSTP support for Ethernet IP; FTP for Ethernet IP; ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP; Auto-MDIX for Ethernet IP/Modbus TCP; 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP; FDR for Ethernet IP/Modbus TCP
- Communication network type
- IPv6 (internet protocol)
- Topology
- Daisy chain
- Time synchronisation protocol
- SNTP
- Web server
- Embedded HTTP server
- Web services
- Save/restore drive configuration; Drive setting and diagnostic; Energy monitoring; Widgets (ID, control, data table, diagnostic, charts); Upgrade drive firmware; Customizable home page; Drive monitor; Pump function setting and monitoring; Ethernet setting and diagnostic
- Display type
- 1 LED for MS (Module Status); 1 LED for NS (Network Status); 1 LED for TX/RX (Transmit/Receive port 1); 1 LED for TX/RX (Transmit/Receive port 2)
- Bus profile
- CIP AC Drive; CiA 402
- Product weight
- 0.2 kg
- Product certifications
- ODVA; Achilles: level 2
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.700 cm
- Package 1 Width
- 13.000 cm
- Package 1 Length
- 18.800 cm
- Package 1 Weight
- 159.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 16
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.290 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606480702549
- SAP 1200003578
- Code 8463626
Product Documentation
