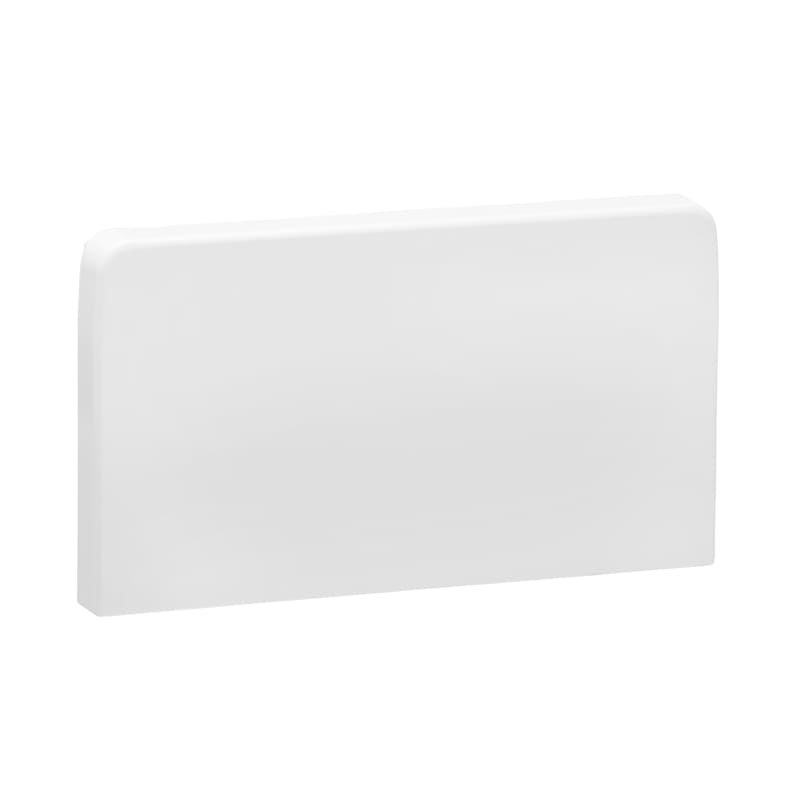

Schneider Electric OptiLine 45/70 Stop End 95x55mm PC/ABS Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10204P OptiLine 45 end piece in polar-white PC/ABS, halogen-free for 95x55 mm channels, supplied as a pack of two. Symmetric snap-on and screw fastening with IK07 impact resistance and IP40 protection. Compatible with OptiLine 45 and OptiLine 70 trunking.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10204P
- EAN / GTIN
- 3606480681622
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range of product
- OptiLine 70; OptiLine 45
- Cabling installation system
- Trunking
- product type
- Stop end
- colour
- Polar white (RAL 9003)
- quantity package 1 / unit
- Set of 2
- Trunking material
- Plastic
- Trunking dimension
- 95 x 55 mm
- fixing mode
- Snap-fitted; Screw
- product material
- PC/ABS
- Length
- 21 mm
- Height
- 99 mm
- Width
- 56 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1
- operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 2
- Number of Units in Package 3
- 200
- Warranty (in months)
- 18
- Model
- Symmetric
- Halogen free
- Yes
- Depth
- 56 mm
- Suitable for
- Left/right
- RAL-number
- 9003
- Thickness
- 21 mm
- Surface protection
- Untreated
- Material
- Plastic
- Type of fastening
- Snap on
- Impact strength
- IK07
- Joint cover
- Yes
- With protective foil
- No
- Degree of protection (IP)
- IP40
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480681622
- SAP 1200536232
- Code 82696532
