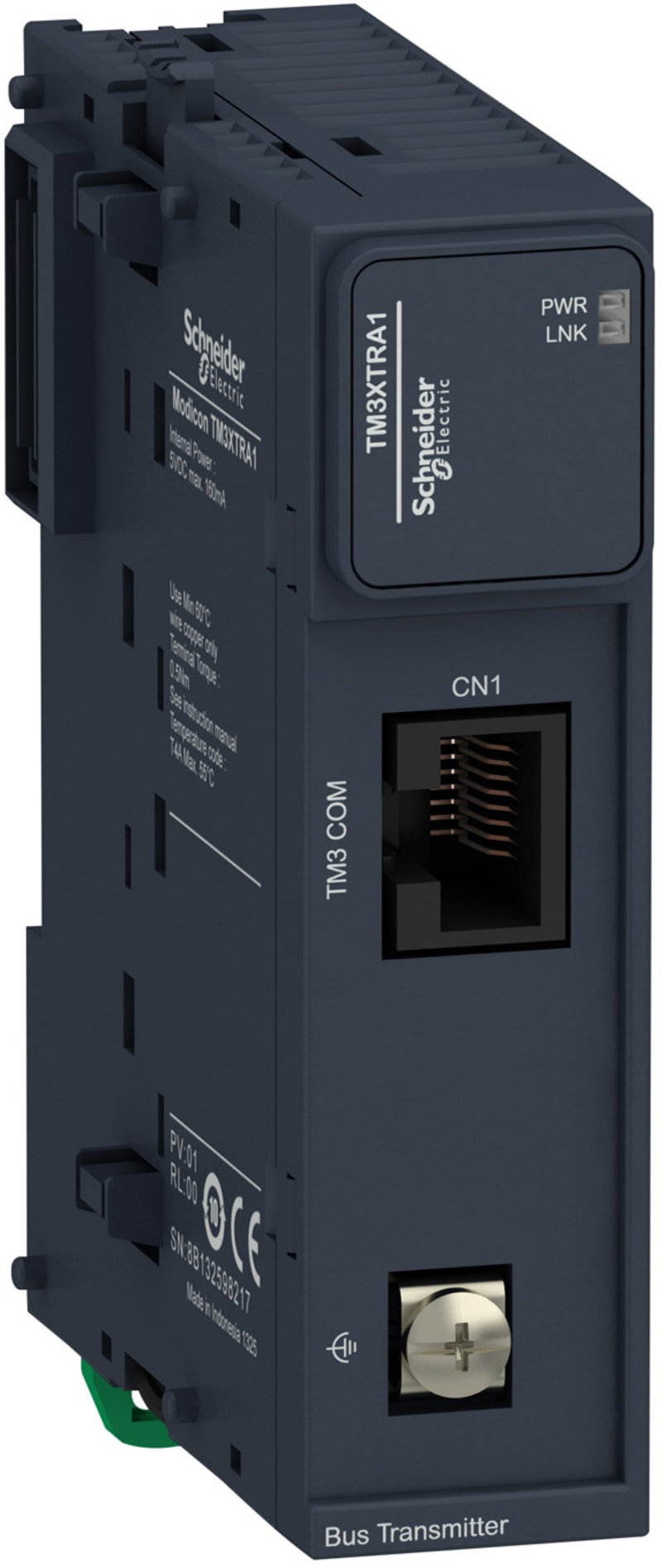

Schneider Electric TM3XTRA1 Modicon TM3 - Remote transmitter module
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric TM3XTRA1 Modicon TM3 - Remote transmitter module is listed under Control & Automation / PLCs & Industrial Networking. Sales unit: pcs; Package quantity: 8 pcs; Range of product: Modicon TM3; Product or component type: Remote transmitter module; Maximum power dissipation in W: 0.6 W; Height: 90 mm.
Technical Specifications
- Manufacturer part number (MPN)
- TM3XTRA1
- EAN / GTIN
- 3606480611230
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range of product
- Modicon TM3
- Product or component type
- Remote transmitter module
- Range compatibility
- Modicon M241; Modicon M251; Modicon M221; Modicon M262
- Current consumption
- 100 mA at 5 V DC via bus connector at state on; 30 mA at 5 V DC via bus connector at state off
- Maximum power dissipation in W
- 0.6 W
- Cable distance between devices
- 0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
- Electrical connection
- RJ45 connector for connecting the bus receiver; Screw connector terminal for connecting the functional ground
- Local signalling
- 1 LED green for power supply; 1 LED green for Link (Link Status)
- Electromagnetic emission
- Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
- Mounting support
- Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit
- Height
- 90 mm
- Width
- 23.65 mm
- Depth
- 73.3 mm
- Product weight
- 0.065 kg
- IP degree of protection
- IP20
- Marking
- CE
- Product certifications
- Merchant Navy; C-Tick; GOST; CSA HazLoc; CE; UKCA; RCM; EAC; CULus
- Standards
- CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group C; CSA C22.2 No 213 Class I Division 2 Group D; UL 1604 Class 1 Division 2; CSA C22.2 No 142; IEC 61131-2; UL 508
- Ambient air temperature for operation
- -10…55 °C (horizontal installation); -10…50 °C (vertical installation)
- Ambient air temperature for storage
- -40…70 °C
- Relative humidity
- 5…95 % without condensation
- Operating altitude
- 0...2000 m
- Pollution degree
- 2
- Vibration resistance
- 3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting
- Shock resistance
- 15 gn for 11 ms
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 10.700 cm
- Package 1 Length
- 12.700 cm
- Package 1 Weight
- 166.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 18
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.721 kg
- Country of origin
- ID
- Warranty (in months)
- 18
- Power consumption
- 1.1 W
- Certified for UL hazardous location division 1
- No
- Certified for UL hazardous location division 2
- No
- Certified for UL hazardous location group A (acetylene)
- No
- Certified for UL hazardous location group B (hydrogen)
- No
- Certified for UL hazardous location group C (ethylene)
- No
- Certified for UL hazardous location group D (propane)
- No
- Certified for UL hazardous location group E (metal dusts)
- No
- Certified for UL hazardous location class I
- No
- Certified for UL hazardous location class II
- No
- Certified for UL hazardous location class III
- No
- Supporting protocol for EtherCAT
- No
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for ASI
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for LON
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for SERCOS
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for INTERBUS-Safety
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Supporting protocol for other bus systems
- No
- Radio standard Bluetooth
- No
- Radio standard WLAN 802.11
- No
- Radio standard GPRS
- No
- Radio standard GSM
- No
- Mobile communications standard 3G (UMTS)
- No
- IO link master
- No
- Redundancy
- No
- Type of data transmission
- Module rack extension
- With potential separation
- No
- SIL according to IEC 61508
- None
- Suitable for safety functions
- No
- Performance level according to EN ISO 13849-1
- None
- Appendant operation agent (Ex ia)
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480611230
- SAP 1000506854
- Code 8914220
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 25A, 48V AC coil, screw clamp terminals LC1D25E7
Schneider Electric
Schneider Electric ZB5AP4S red flush pushbutton head Ø22 spring return unmarked
Schneider Electric
Schneider Electric Regulated Power Supply, 100...240V AC, 24V 4.5A, single phase, Panel Mount ABLP1A24045
Schneider Electric
Schneider Electric Switch actuator REG-K/4X230/16 with manual mode, light grey MTN647593
Schneider Electric
Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 16 A, C Curve, 6000 A, 300 mA, A type A9DC7616
Schneider Electric

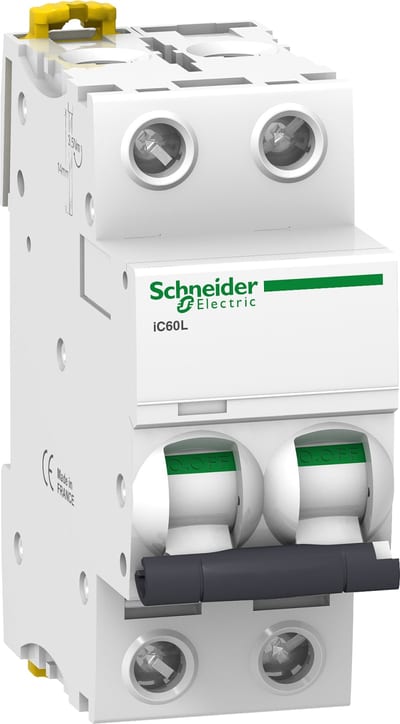

Schneider Electric A9F94206 ACTI9 IC60L Miniature Circuit Breaker 2P 6 A, Curve C
Schneider Electric

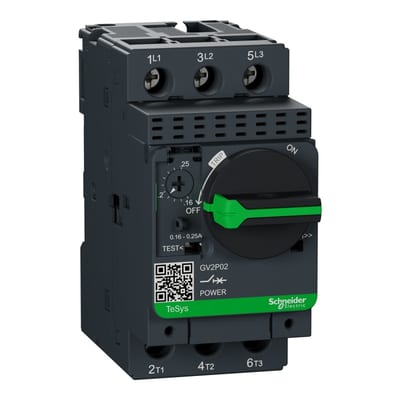

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.16-0.25 A, thermal magnetic, screw clamp terminals GV2P02
