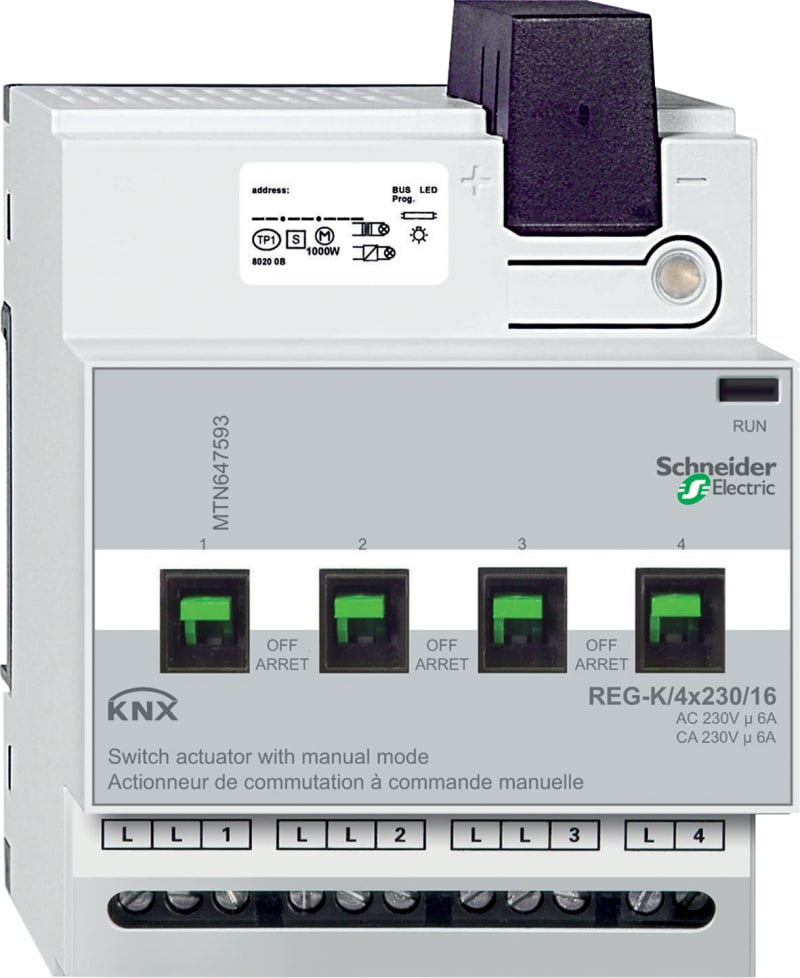

Schneider Electric Switch actuator REG-K/4X230/16 with manual mode, light grey MTN647593
Pricing
Request a quote
We reply within 24 hours
Product Description
KNX binary output 4X230V/16A.
Technical Specifications
- Manufacturer part number (MPN)
- MTN647593
- EAN / GTIN
- 3606485011783
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- KNX
- Product or component type
- Switch actuator
- Operating mode
- Manual
- Bus type
- KNX
- Modular device additional info
- Connectable with different phases
- Number of contacts
- 4
- Switching current
- 16 A
- Colour tint
- Light grey
- Power supply input current
- 12.5 mA
- Total number of 18 mm modules
- 4
- Mounting support
- DIN rail
- Device mounting
- DIN rail
- [Ue] rated operational voltage
- 230 V
- Network frequency
- 50...60 Hz
- [In] rated current
- 16 A
- Load type
- Incandescent lamps: <= 3600 W, 230 V AC; Halogen lamps: <= 2500 W, 230 V AC; Capacitive: , 16 A, 200 µF, 230 V AC; Fluorescent lamps: <= 2500 VA, 230 V AC
- Device presentation
- Complete product
- Main colour tint
- Light grey
- IP degree of protection
- IP20
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.200 cm
- Package 1 Width
- 12.900 cm
- Package 1 Length
- 15.900 cm
- Package 1 Weight
- 342.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 10
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.798 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Width in number of modular spacings
- 4
- Max. switching power
- 3600 W
- Output power
- 3600 W
- Max. number of switching contacts
- 4
- Max. switching current
- 16 A
- Rated current
- 16 A
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606485011783
- SAP 1000483463
- Code 8596152
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 16 A, C Curve, 6000 A, 300 mA, A type A9DC7616
Schneider Electric
Schneider Electric A9F94206 ACTI9 IC60L Miniature Circuit Breaker 2P 6 A, Curve C
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.16-0.25 A, thermal magnetic, screw clamp terminals GV2P02
Schneider Electric
Schneider Electric Adjustable Wall Console TN-110 110-170mm
5583574
Schneider Electric

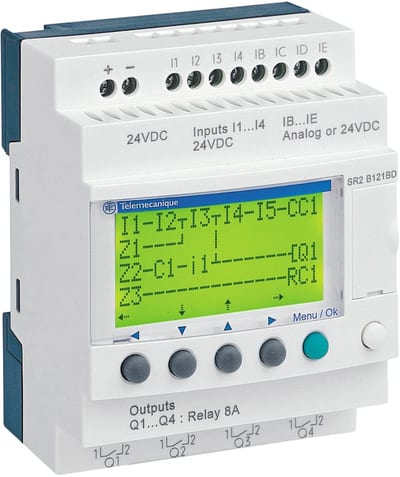

Schneider Electric compact smart relay Zelio Logic - 12 I O - 24 V DC - clock - display SR2B121BD
Schneider Electric

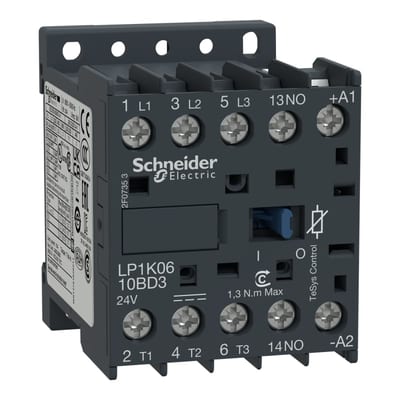

Schneider Electric TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil LP1K0610BD3
Schneider Electric

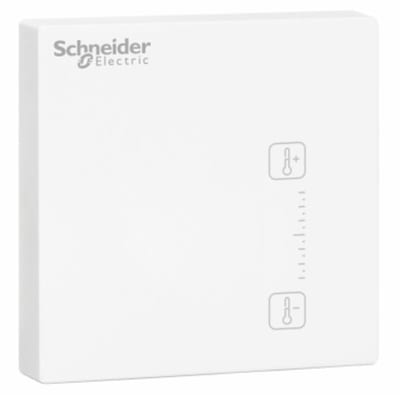

Schneider Electric Air quality multisensor, Spacelogic KNX, surface, polar white, Supply KNX 5 mA MTN6005-0011
Schneider Electric

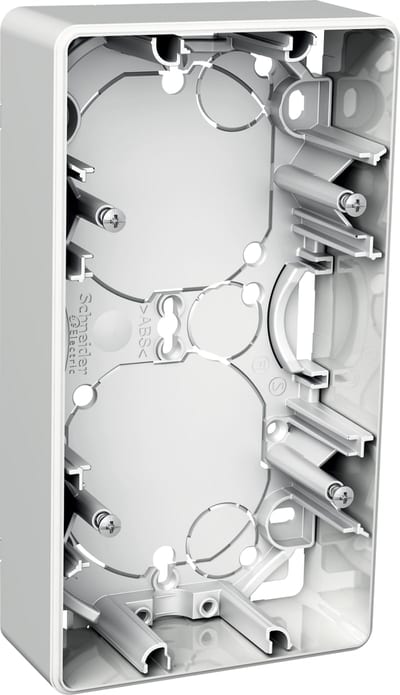

Exxact 2*PV-Cover 35mm White
