Product Description

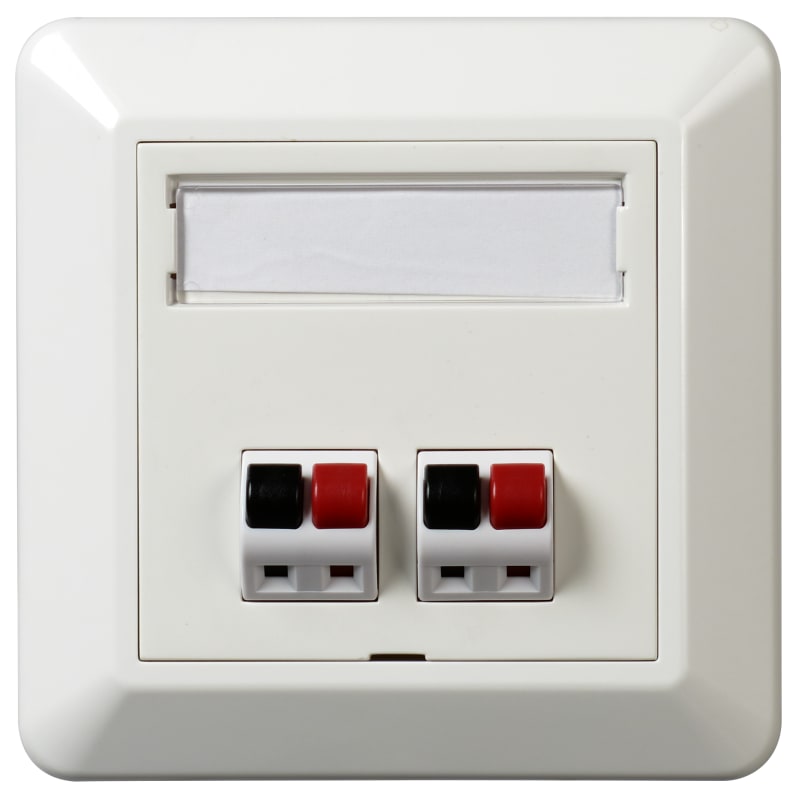

Schneider Electric EKO05591 is a flush-mounted dual loudspeaker outlet in the RS16/MOD range, providing two female connectors on an inclined outlet direction with full white cover plate. Intended for installation-box mounting at minimum 25 mm depth, it offers halogen-free plastic construction with a glossy RAL 9010 finish and IP21 protection. The 74 x 74 x 24 mm module suits fixed audio distribution in residential and commercial installations.
Technical Specifications
- Manufacturer part number (MPN)
- EKO05591
- EAN / GTIN
- 7020160559104
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with full cover plate
- Colour
- White
- Halogen free
- Yes
- With hinged lid
- No
- Utilization
- Loudspeaker connection
- Surface protection
- Untreated
- Outlet direction
- Inclined
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- With indication plate
- Suitable for number of connectors
- 2
- Contact type
- Female
- Material
- Plastic
- Type of fastening
- Mounting with screw
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- RAL-number (similar)
- 9010
- With dust cover
- Yes
- With imprint
- No
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Surface finishing
- Glossy
- Suitable for degree of protection (IP)
- IP21
- Device width
- 74 mm
- Device height
- 74 mm
- Device depth
- 24 mm
- Number of modules (module system)
- 1
- Min. depth of built-in installation box
- 25 mm
- Isolated connections
- No
- Anti-bacterial treatment
- No
- Country of origin
- Estonia
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 7020160559104
- SAP 1000633869
- Code 8150908
