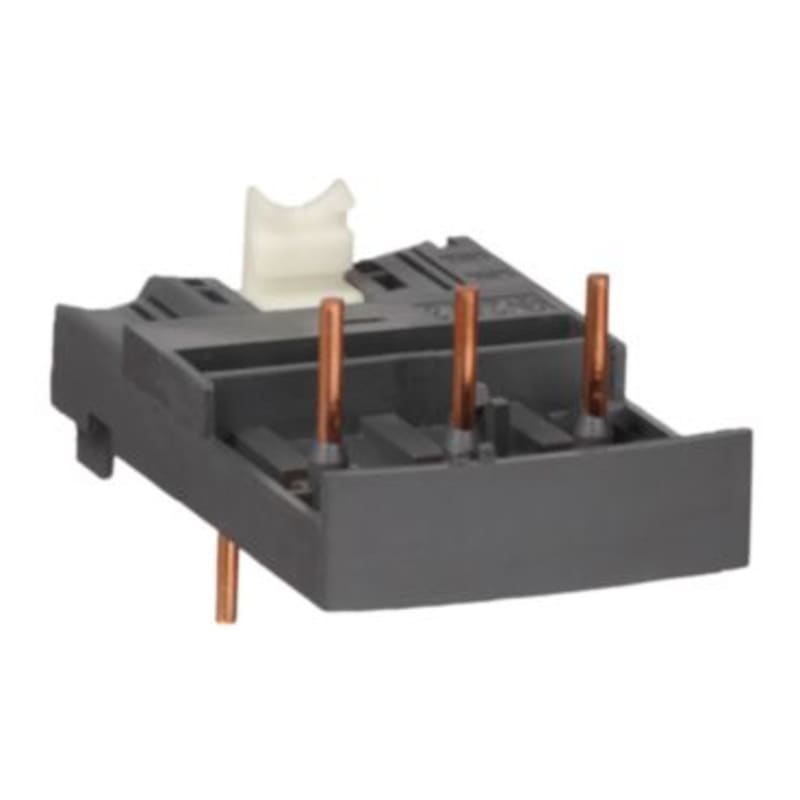

Schneider Electric GV2AF3 TeSys GV2 - Combination blocks - with contactor LC1D09...D38
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric GV2AF3 TeSys GV2 - Combination blocks - with contactor LC1D09...D38 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 10 pcs; Range: Linergy; Product name: FT; Device short name: GV2AF; Product or component type: Combination block.
Technical Specifications
- Manufacturer part number (MPN)
- GV2AF3
- EAN / GTIN
- 3389110569063
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Product name
- FT
- Device short name
- GV2AF
- Product or component type
- Combination block
- Accessory / separate part category
- Connection accessory
- Range compatibility
- TeSys GV2; TeSys Deca
- Product compatibility
- LC1D09...D38
- Poles description
- 3P
- [Ie] rated operational current
- 32 A
- Product weight
- 0.016 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.500 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 5.000 cm
- Package 1 Weight
- 22.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 9.500 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 15.200 cm
- Package 2 Weight
- 269.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 140
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 4.196 kg
- Country of origin
- HU
- Warranty (in months)
- 18
- Suitable for number of poles
- 3
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110569063
- SAP 1000072604
- Code 8563358
