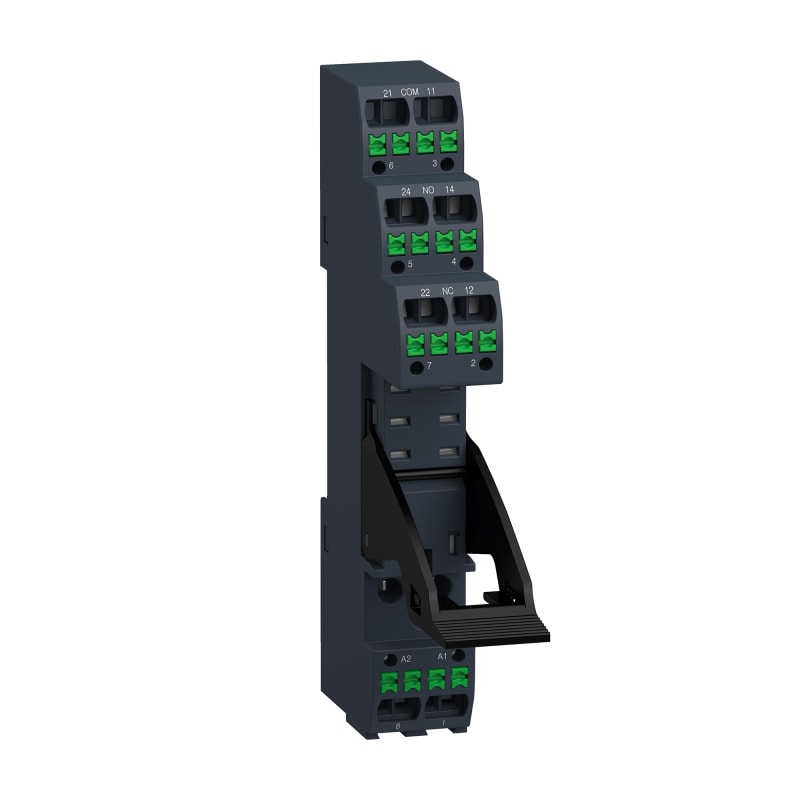

Plinth for RXG2 relay push-in

Schneider Electric RGZE08P Zelio plinth with push-in spring terminals for RXG relayer with 2 contacts.

Manufacturer part number (MPN)

RGZE08P

EAN / GTIN

3606481465726

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RGZ

Product or component type

Socket

Product compatibility

Plug-in relay RXG with 2 C/O contact

Contacts type and composition

2 C/O

[Ui] rated insulation voltage

250 V

[Uimp] rated impulse withstand voltage

6 kV between coil and contact with reinforced insulation; 4 kV between poles with basic insulation; 4 kV between terminals and DIN rail with basic insulation

[Ue] rated operational voltage

250 V conforming to IEC; 300 V conforming to UL

Dielectric strength

5 kV between coil and contact with reinforced insulation; 3 kV between poles with basic insulation; 3 kV between terminals and DIN rail with basic insulation

Shape of pin

Flat

Connections - terminals

Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) flexible with cable end; Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Fixing mode

Clip-on (35 mm symmetrical DIN rail)

Length

98 mm

Contact terminal arrangement

Separate

Overvoltage category

III

Pollution degree

3

Width

16 mm

Height

67 mm

Product weight

0.042 kg

Standards

IEC 61984

Product certifications

CSA; UL; EAC; DNV-GL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

160

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481465726
• SAP 1200464257
• Code 82524906
