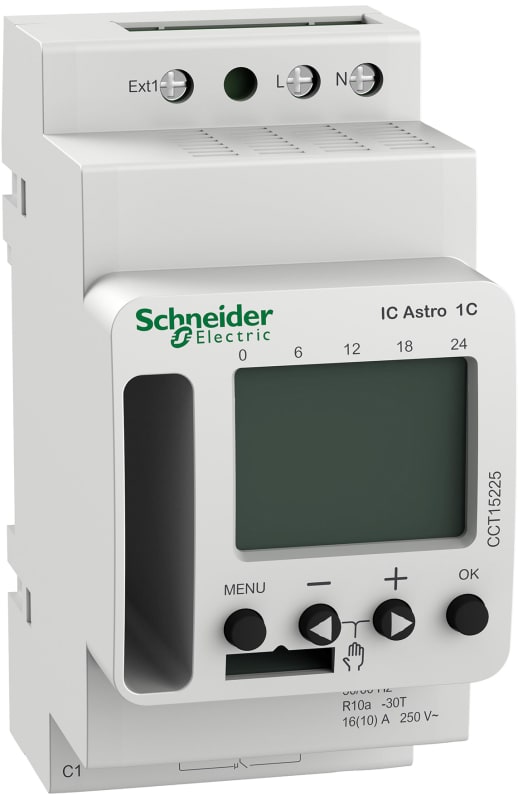

Schneider Electric ACTI9 IC Astro 1C SMART programmable twilight switch CCT15225

Schneider Electric CCT15225 — Acti9 IC Astro 1C SMART programmable twilight switch.

Manufacturer part number (MPN)

CCT15225 EAN / GTIN: 3606489524548 Sales unit: pcs Package quantity: 40 pcs Product name: Acti9 IC Product or component type: Programmable astronomic twilight switch Device short name: IC Astro Number of channels: 1 User language: English; French; Danish; Dutch; Turkish; Norwegian; Spanish; Swedish; Romanian; Hungarian; Russian; Polish; Portuguese; Slovene; Bulgarian; German; Croatian; Italian Type of setting: Weekly programming Device application: Building Maximum power consumption in W: 0.5 W standby Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Contacts type and composition: C/O Control type: By calculation of sunrise/sunset times control button type: 4 push-buttons Function available: External input for override; Code lock function; Holiday schedules; Automatic winter/summer time changeover; On/off permanent switching; Sunrise/sunset time offset +/- 120 min; Position setting; Switch preselection Load type: Incandescent lamp 2600 W; Halogen lamp 2600 W; Non-corrected fluorescent tube 2300 VA; Serial-compensated fluorescent tube 2300 VA; Parallel compensated fluorescent lamp 730 VA 80 µF; Compact fluorescent lamp 170 W; LED lamp 2 W 200 W Accuracy: +/- 0.25 s/day 25 °C Output type: Dry contact Operating mode: Evening on, morning off; Evening off, morning on inactive; Only timer switch is active Maximum number of switchings: 84 Backup time: 10 years Display type: Backlit LCD Information displayed: Time; Operating time counter (per channel) ; Switching behaviour; Day Mounting support: TH35 DIN rail conforming to EN 60715 Connections - terminals: 2 x 0.5…2.5 mm² screw terminals solid or flexible; 1 x 2.5 mm² screw terminals solid or flexible with sleeve Marking: CE Electrical insulation class: Class II Overvoltage category: Class 3 Height: 92.6 mm Width: 45 mm Depth: 66.7 mm Product weight: 115 g Standards: EN 60730-2-7:2010 Ambient air temperature for operation: -30…55 °C ambient air temp for storage/transportation: -30…70 °C IP degree of protection: IP20 Relative humidity: 90 %, non-condensing Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 8.000 cm Package 1 Width: 6.700 cm Package 1 Length: 10.400 cm Package 1 Weight: 159.000 g Unit Type of Package 2: S03 Number of Units in Package 2: 40 Package 2 Height: 30.000 cm Package 2 Width: 30.000 cm Package 2 Length: 40.000 cm Package 2 Weight: 6.819 kg Unit Type of Package 3: P12 Number of Units in Package 3: 320 Package 3 Height: 45.000 cm Package 3 Width: 80.000 cm Package 3 Length: 120.000 cm Package 3 Weight: 78.000 kg Country of origin: DE Warranty (in months): 18 Rated voltage: 230 V Max. incandescent lamp load: 2600 W Max. load fluorescent lamp: 2300 VA Max. switching current (cos phi = 0.6): 10 A Rated switch current: 16 A With programmable overnight shutoff: Yes Push button input: Yes Mounting method light sensor: Not included Mounting method: DIN rail Width in number of modular spacings: 2.5 Built-in depth: 67 mm Degree of protection (IP): IP20

HS Code

8504.40

• EAN 3606489524548
• SAP 1200314490
• Code 82302430
