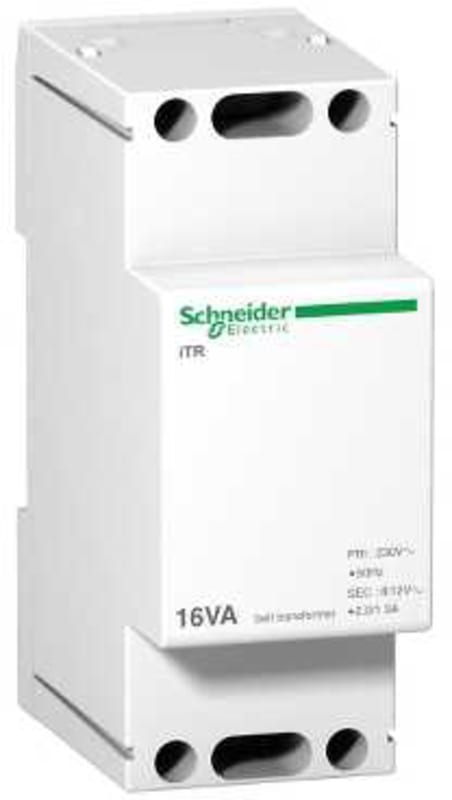

Schneider Electric A9A15212 ACTI9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric A9A15212 ACTI9 modular bell transfomer iTR - 230 V 50..60 Hz - output 8..12 V - 16 VA is listed under Electrical Components / Modular Devices. Sales unit: pcs; Package quantity: 50 pcs; range of product: Acti9; Product name: Acti9 iTR; Product or component type: Transformer; Device short name: iTR.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15212
- EAN / GTIN
- 3606480097843
- Sales unit
- pcs
- Package quantity
- 50 pcs
- range of product
- Acti9
- Product name
- Acti9 iTR
- Product or component type
- Transformer
- Device short name
- iTR
- Transformer type
- Bell transformer
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Output voltage
- 8/12 V: +/- 15 % on load; 13/18 V: off load
- Output short-circuit protection
- Built-in
- rated power in VA
- 16 VA
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 4
- Height
- 89 mm
- Width
- 36 mm
- Depth
- 60 mm
- Colour
- White
- Auxiliary connection terminal
- Tunnel type terminalsrigid 2.5 mm²; Tunnel type terminalsflexible 2.5 mm²; Tunnel type terminalsflexible with ferrule 2.5 mm²
- Wire stripping length
- 5 mm
- Tightening torque
- 0.5 N.m
- Standards
- IEC 61558-2-6; EN 61558-2-6; EN 60742
- Product certifications
- NF
- IP degree of protection
- IP20 conforming to IEC 60529
- Overvoltage category
- Class II with terminal shields in option
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -25…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 7.500 cm
- Package 1 Length
- 9.500 cm
- Package 1 Weight
- 414.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 28
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 11.898 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Type of transformer
- Standard bell ringing transformer
- With on/off switch
- No
- Length
- 60 mm
- Max. output power
- 16 W
- Width in number of modular spacings
- 2
- Surface mounting
- No
- Short-circuit protected
- Yes
- Primary voltage
- 230 V
- Secondary voltage 1
- 8 V
- Secondary voltage 2
- 12 V
- Secondary amperage 1
- 2 A
- Secondary amperage 2
- 1.3 A
- Temperature protection
- Yes
- Max. power loss
- 2 W
- Flush-mounted installation
- No
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480097843
- SAP 1000326980
- Code 8844753
