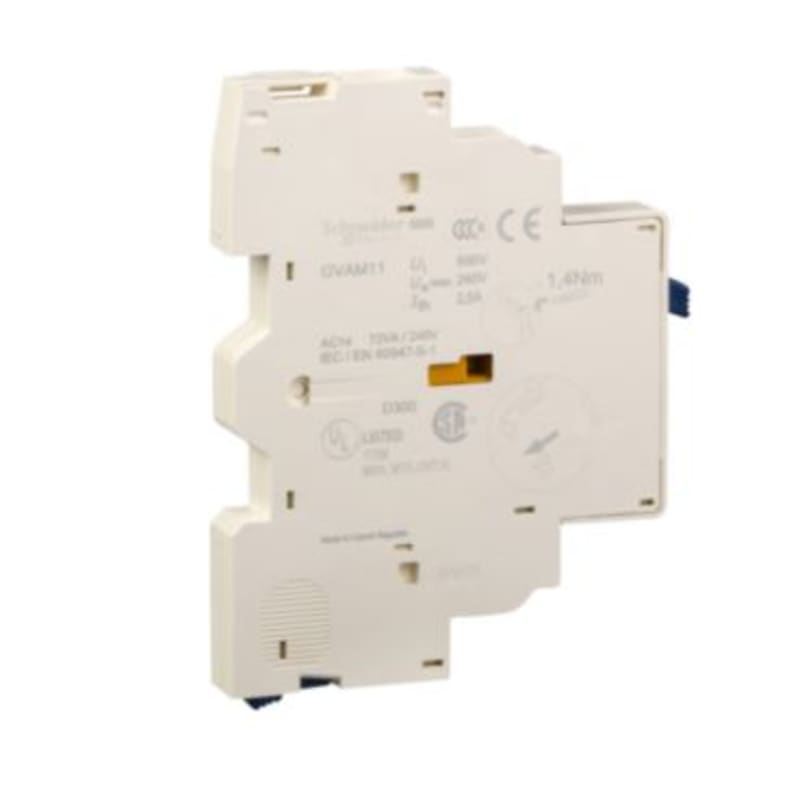

Auxiliary Cover 1C/O KORTSL. GV2

Schneider Electric GVAM11 Auxiliary block 1C/O (Kortsl.) GV2.

Manufacturer part number (MPN)

GVAM11 EAN / GTIN: 3389110343564 Sales unit: pcs Package quantity: 10 pcs Range: TeSys; TeSys Deca Device short name: GVAM Product or component type: Auxiliary contact block Product compatibility: GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV2LM; GV3P; GV3L Mounting location: Left side Auxiliary contacts operation: Short-circuit signal 1 C/O Pole contact composition: 1 C/O [Ui] rated insulation voltage: 690 V conforming to IEC 60947-1; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A for fault signalling Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GB2CB... circuit breaker; GG fuse 10 A Rated operational power in VA: 36 VA at 24 V AC-14 - electrical durability: 1000 cycles at 1.5 A; 48 VA at 48 V AC-14 - electrical durability: 1000 cycles at 1 A; 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles at 0.5 A; 72 VA at 230…240 V AC-14 - electrical durability: 1000 cycles at 0.3 A Rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles; 140 W at 110 V DC-13 - electrical durability: 100000 cycles; 140 W at 24 V DC-13 - electrical durability: 100000 cycles; 180 W at 60 V DC-13 - electrical durability: 100000 cycles; 240 W at 48 V DC-13 - electrical durability: 100000 cycles; 15 W at 48 V DC-13 - electrical durability: 1000 cycles; 24 W at 24 V DC-13 - electrical durability: 1000 cycles; 9 W at 60 V DC-13 - electrical durability: 1000 cycles Tightening torque: 1.4 N.m screw clamp terminals Height: 89 mm Width: 9.3 mm Depth: 66 mm Product weight: 0.055 kg Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus; EAC Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.5 cm Package 1 Width: 13 cm Package 1 Length: 15 cm Package 1 Weight: 39 g Unit Type of Package 2: S01 Number of Units in Package 2: 25 Package 2 Height: 15 cm Package 2 Width: 15 cm Package 2 Length: 40 cm Package 2 Weight: 1.17 kg Unit Type of Package 3: P06 Number of Units in Package 3: 800 Package 3 Height: 75 cm Package 3 Width: 60 cm Package 3 Length: 80 cm Package 3 Weight: 47.44 kg Country of origin: CZ Warranty (in months): 18

HS Code

8538.90

• EAN 3389110343564
• SAP 1000043958
• Code 8781518
