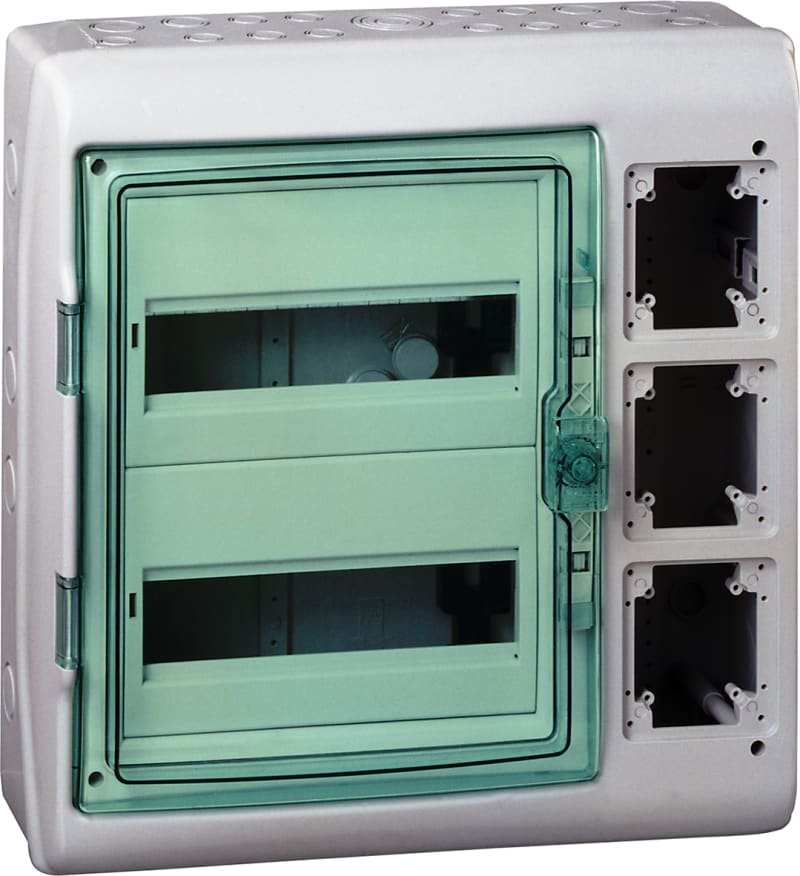

Kaedra IP65 2 rows with sidefelt

Schneider Electric 13439 Kaedra - for module with sidefelt - 2 x 12 modules - 2 terminal blocks.

Manufacturer part number (MPN)

13439

EAN / GTIN

3303430134398

Sales unit

pcs

IP rating

IP65

Range

Mureva

Product name

Mureva Enclosure

Product or component type

Weatherproof enclosure

enclosure type

Enclosure for modular device with interface

Mounting plate description

Slotted

Enclosure mounting

Surface

9 mm pitches

24

Number of 18 mm modules per row

12

Total number of 18 mm modules

24

Number of horizontal rows

2

Electrical insulation class

Double insulation; Class II

Number of openings of interface

3

Number of plates

1 for 65 x 85 power outlets; 3 for push-button controls

Provided equipment

2 marking kit; 2 wiring strap; 1 plate for 65 x 85 power outlet; 3 plate for push-button control; 1 terminal block support; 2 terminal block 22 holes

Type of front cover

Reversible; Transparent

[In] rated current

90 A

Type of rail

DIN

Number of pre-cutouts PG ISO

17

Number of terminal blocks

2 earth / neutral (screw connection) with 22 outgoers

Distribution block outgoers

22 x 10 mm²; 22 x 16 mm²

Locking options description

Optional keylock

Enclosure material

Self-extinguishing polymer

Base dimension

90 x 100 mm

Width

448 mm

Height

460 mm

Depth

160 mm

Internal depth

88 mm

Colour

Door: transparent green; Enclosure: light grey (RAL 7035)

Standards

IEC 60670-1; IEC 60670-24; EN 50262; IEC 60695-2-1

Fire resistance

650 °C conforming to IEC 60695-2-1

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK09 conforming to EN 50102

Environmental characteristics (UV)

UV resistant: class 3 conforming to ISO 4582:2010; Ultraviolet degradation test conforming to ISO 4892-2:2013

Overvoltage category

II

Ambient air temperature for operation

-25…60 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

18.000 cm

Package 1 Width

47.000 cm

Package 1 Length

47.500 cm

Package 1 Weight

4.250 kg

Unit Type of Package 2

P12

Number of Units in Package 2

18

Package 2 Height

80.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

87.240 kg

Country of origin

FR

Warranty (in months)

18

Mounting method

Surface mounted

UV resistant

Yes

RAL-number

7035

Number of rows

2

Type of covering

Door

Inner depth

88 mm

Housing material

Plastic

Width in number of modular spacings

12

Type of door

Single

Degree of protection (IP)

IP65

Cover model

Closed

Number of openings for socket outlets

3

HS Code

8538.10

• EAN 3303430134398
• SAP 1000521152
• Code 8846466
