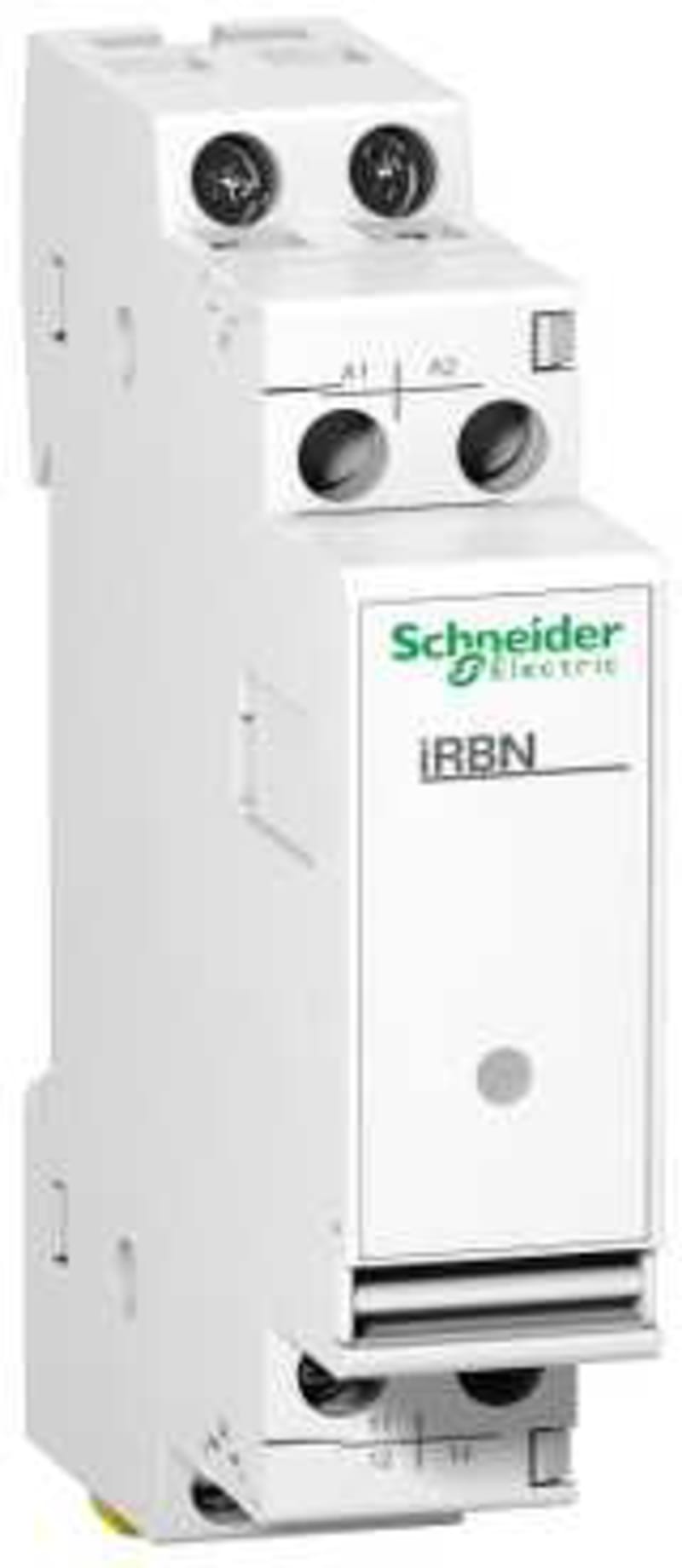

Schneider Electric low level interface relay iRBN - 5MA/5VAC-DC - 2A/250VCA - 230VAC A9A15393
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9A15393 Gr.snittrelè iRBN 230/5mA 5V.
Technical Specifications
- Manufacturer part number (MPN)
- A9A15393
- EAN / GTIN
- 3606480097737
- Sales unit
- pcs
- Device application
- Low level interface relay
- Function available
- Actuation of low-amperage electronic circuits upon receiving LV order
- Range
- Acti9
- Product name
- Acti9 iRBN
- Product or component type
- Relay
- Device short name
- iRBN
- Signal contacts composition
- 1 C/O
- [Uc] control circuit voltage
- 230 V AC 50/60 Hz
- [Ie] rated operational current
- 2 A at 250 V AC; 0.005 A at 5 V AC; 0.005 A at 5 V DC
- [Ui] rated insulation voltage
- 4000 V
- Local signalling
- LED (green) for power ON
- Supply holding power
- 2.5 VA
- Supply inrush power
- 5 VA
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- 9 mm pitches
- 2
- Electrical durability
- 100000 cycles
- Connections - terminals
- Tunnel type terminals
- Standards
- IEC 529; IEC 255-100
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.700 cm
- Package 1 Width
- 1.800 cm
- Package 1 Length
- 8.500 cm
- Package 1 Weight
- 64.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 12
- Package 2 Height
- 7.200 cm
- Package 2 Width
- 9.500 cm
- Package 2 Length
- 23.000 cm
- Package 2 Weight
- 819.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 108
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 8.171 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Function
- Partially electronic
- Mounting method
- DIN rail
- Width in number of modular spacings
- 2
- Built-in depth
- 65.5 mm
- Number of contacts as change-over contact
- 1
- Control voltage 1
- 230 V
- Type of control voltage 1
- AC
- Frequency control voltage 1
- 50–60 Hz
- Type of control voltage 2
- AC
- Rated current
- 5 A
- Supply voltage
- 5–250 V
- Voltage type (supply voltage)
- AC
- Max. switching current (cos phi = 0.6)
- 5 A
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606480097737
- SAP 1000327029
- Code 8878801
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric INKA-ES 217 Aluminium End Piece, Natural
5514170
Schneider Electric
Light Unit with blinkende LED in green
XVB7C53
Schneider Electric
Coupler connector 125A 3P+E 400V IP67
81494
Schneider Electric
S-One mounting box 4X RJ45 white
WDE002046
Schneider Electric

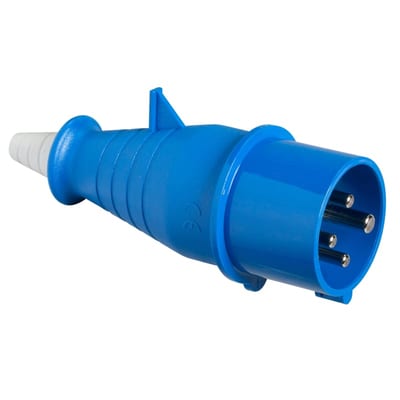

Plug with phase changer. 16A 3P+J 230
83901
Schneider Electric
Schneider Electric EMI-310/CZ Conventional Input/Output Fire Loop Module
FFS06727341
Schneider Electric

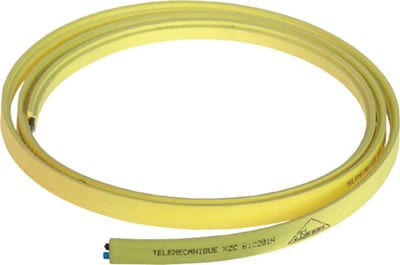

Schneider Electric AS-Interface - flat connecting cable - rubber - yellow - 100M XZCB11001
Schneider Electric

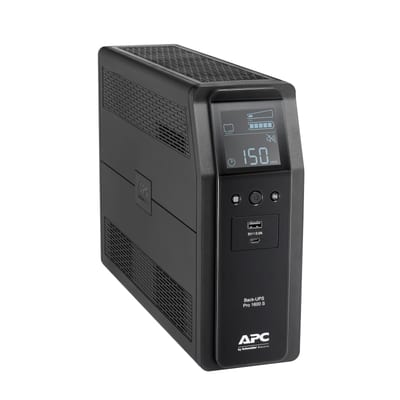

Schneider Electric APC Back-UPS Pro BR1600SI 1600 VA Tower 230 V 8× C13
