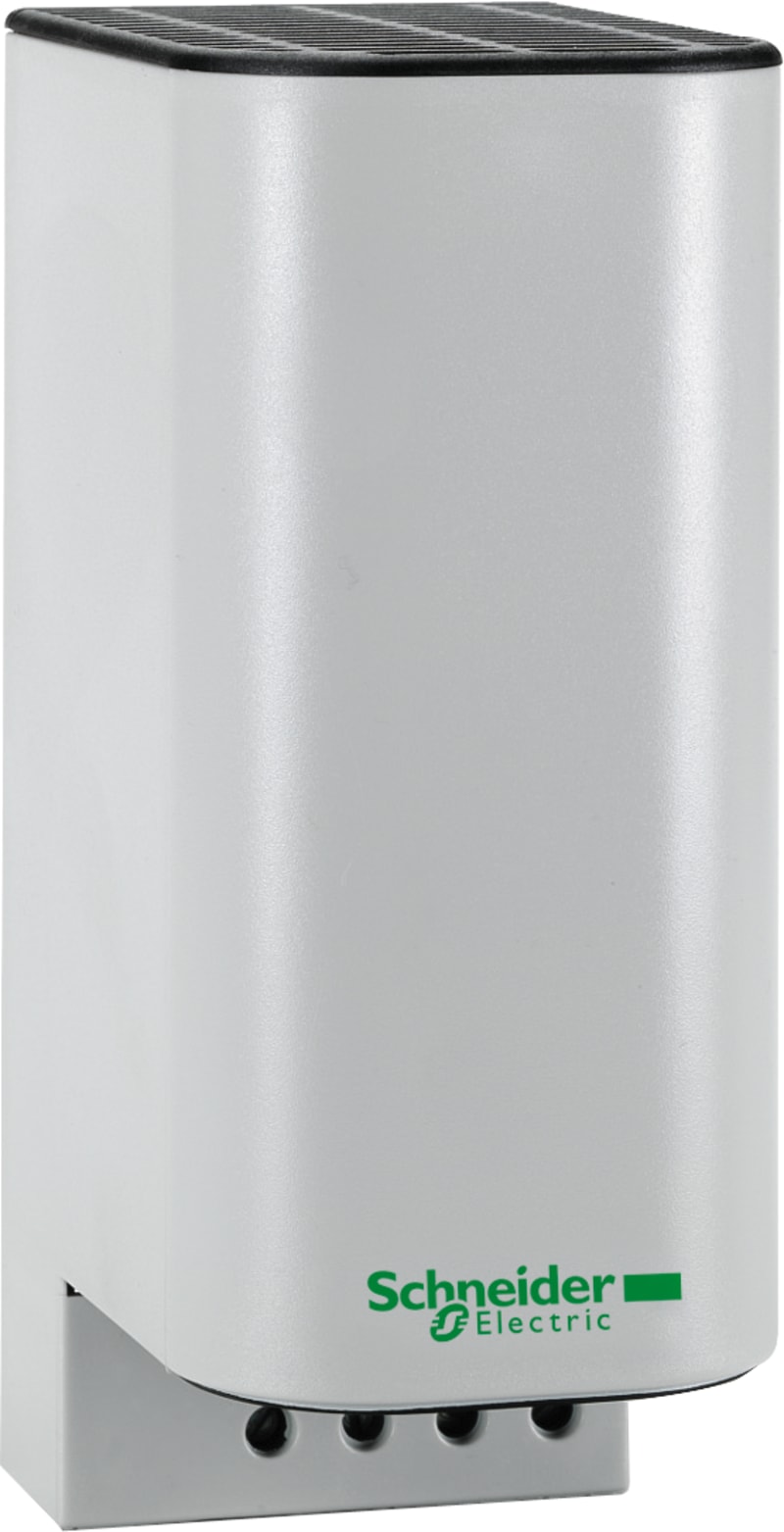

Schneider Electric ClimaSys PTC heating resistance 150W, 12-24V NSYCR150WU1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR150WU1 HEATING ELEMENT 150W 12-24V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR150WU1
- EAN / GTIN
- 3606480152214
- Sales unit
- pcs
- Voltage
- 12-24 V
- Power
- 150 W
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 150 W
- Input voltage
- 12...24 V DC
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium
- Condition of use
- Electrical protection is needed; Air sealed enclosure; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 192
- Country of origin
- CN
- Warranty (in months)
- 18
- Width
- 60 mm
- Height
- 90 mm
- Depth
- 90 mm
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 150 W
- Continuous heating power at 10 °C
- 150 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152214
- SAP 1000470031
- Code 8785972
Product Documentation
More from Schneider Electric
Schneider Electric
Socket with switch 16A 4PJ 400V IP (83136)
Schneider Electric
Schneider Electric A9F08232 ACTI9 IC60H Miniature Circuit Breaker 2P 32 A, Curve D
Schneider Electric
Busbar Linergy BW 125A 3P L450 G/P
LVS04103
Schneider Electric
Schneider Electric low level interface relay iRBN - 5MA/5VAC-DC - 2A/250VCA - 230VAC A9A15393
Schneider Electric
Schneider Electric INKA-ES 217 Aluminium End Piece, Natural
5514170
Schneider Electric
Light Unit with blinkende LED in green
XVB7C53
Schneider Electric

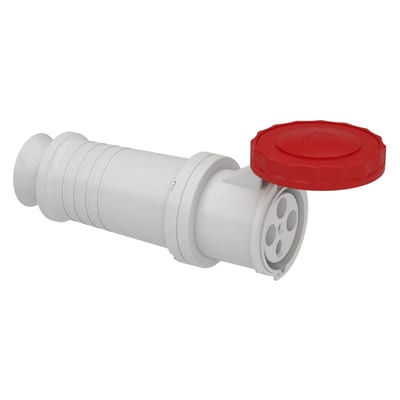

Coupler connector 125A 3P+E 400V IP67
81494
Schneider Electric

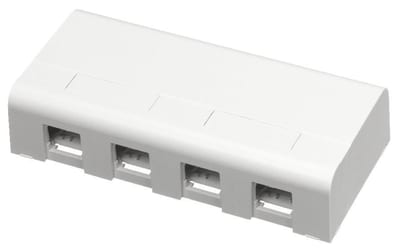

S-One mounting box 4X RJ45 white
WDE002046
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCR150WU1?
- NSYCR150WU1 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCR150WU1.
- What is the HS code for NSYCR150WU1?
- The customs tariff (HS) code for NSYCR150WU1 is 8516.29.
- Who manufactures NSYCR150WU1?
- NSYCR150WU1 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCR150WU1?
- Yes — the NSYCR150WU1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCR150WU1?
- The minimum order quantity is 1.
- Is NSYCR150WU1 available?
- Yes — NSYCR150WU1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
