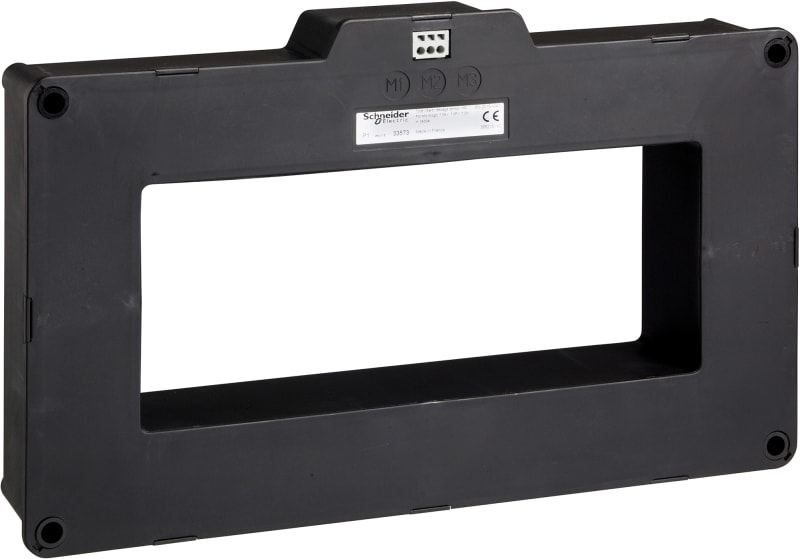

Toroid FOR JORF.VARSL. 470 X 1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33574 TOROID FOR JORF.VARSL. 470 X 160MM.
Technical Specifications
- Manufacturer part number (MPN)
- 33574
- EAN / GTIN
- 3303430335740
- Sales unit
- pcs
- Device short name
- sensor + Vigi cable
- Device application
- Power supply
- Range compatibility
- Masterpact MasterPact NW; ComPact ComPact NS1600b...3200
- Current transformer type
- Earth leakage protection
- [In] rated current
- 800 A; 1000 A; 1250 A; 1600 A; 2000 A; 2500 A; 3200 A
- Height
- Inside: 160 mm; Outside: 281 mm
- Width
- Inside: 470 mm; Outside: 572 mm
- Depth
- 72 mm
- Accessory / separate part category
- Spare part for ComPact NS1600b...3200; Spare part for MasterPact NW
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 18.000 cm
- Package 1 Width
- 65.000 cm
- Package 1 Length
- 34.000 cm
- Package 1 Weight
- 18.450 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 9
- Package 2 Height
- 67.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 180.675 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Current transformer
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3303430335740
- SAP 1200497390
- Code 82627588
Product Documentation
More from Schneider Electric
Schneider Electric
Esmi Impresia White Wall Mounted Sounder
FFS06741014
Schneider Electric
Lock insert 6.5mm (NSYTT6CRN)
Schneider Electric
DIN-rail terminal 4mm² grey 3P
NSYTRV43
Schneider Electric
Schneider Electric arc fault detection switch, ACTI9 iARC, 1P + N, 40 A A9TSB3640
Schneider Electric
Cablepl. 7035 FOR1000X320 PLA
NSYECPLAZ103G
Schneider Electric

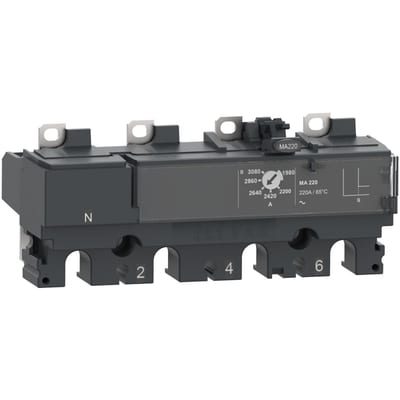

Schneider Electric Trip unit MA220, ComPacT NSX250, 4 poles 3D (neutral not protected), magnetic, motor protection, 220A rating C256MA220
Schneider Electric

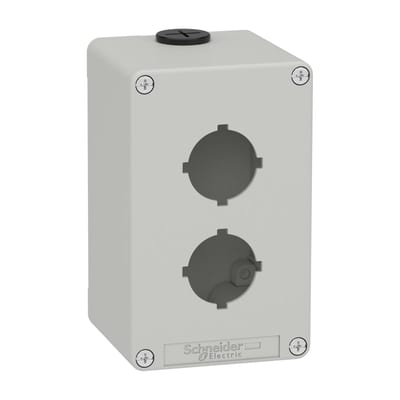

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 2 cut-outs 30mm with notches, 80 x 130 x 77, UL cULus XAPD2602
Schneider Electric

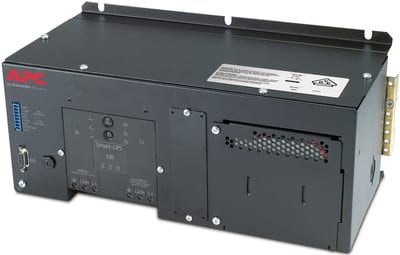

Schneider Electric APC DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V SUA500PDRI-S
