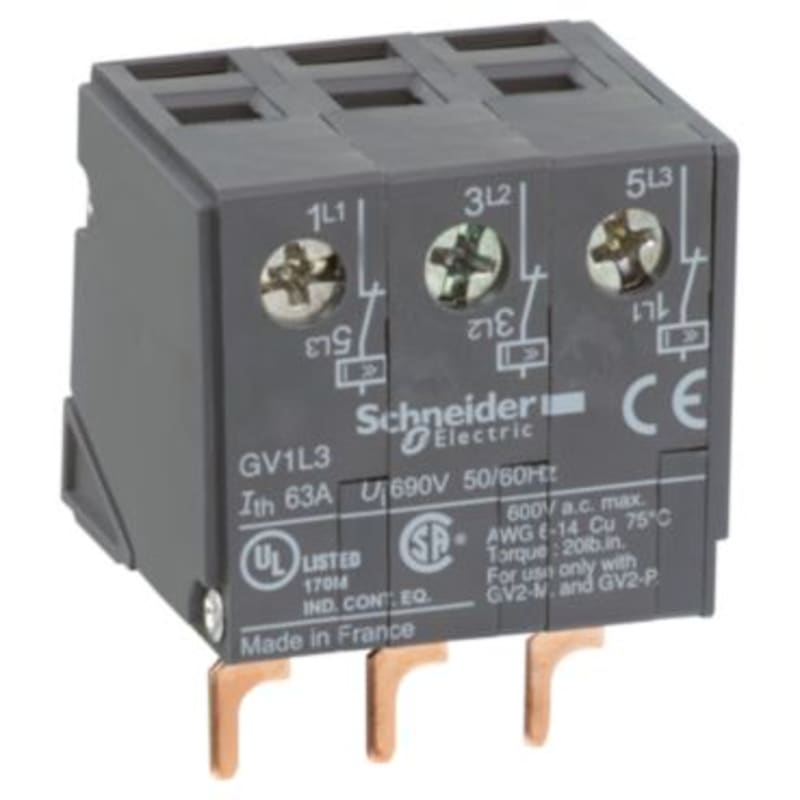

Schneider Electric TeSys GV1L3 Current Limiter Module 32 A 100 kA

The Schneider Electric GV1L3 is a current-limiting accessory module for TeSys GV2 and TeSys Deca motor-protection circuit breakers, mounted directly on top of the breaker. It raises the conditioned short-circuit breaking capacity of the assembly to 100 kA at 690 V AC with a rated operational current of 32 A and 63 A thermal current. Typical use is in motor-starter combinations where the prospective short-circuit current at the panel exceeds the breaker's own capacity.

Manufacturer part number (MPN)

GV1L3

EAN / GTIN

3389110209952

Sales unit

pcs

Package quantity

24 pcs

Breaking capacity

100 kA

Range

TeSys

Range of product

TeSys GV2; TeSys Deca

Accessory / separate part category

Protection accessory

Product or component type

Current limiting module

Range compatibility

TeSys GV2; TeSys Deca

Product compatibility

GV2RT; GV2ME; GV2P; GV2L

Function of module

Increasing the breaking capacity of a circuit breaker

Mounting location

On top of the circuit breaker

[Ie] rated operational current

32 A

[Ith] conventional free air thermal current

63 A conforming to IEC 60947-1

Activation threshold

1500 A

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-1

Connections - terminals

Screw clamp terminals 1 x 1.5…25 mm² rigid; Screw clamp terminals 2 x 1.5…10 mm² rigid; Screw clamp terminals 1 x 1.5…25 mm² flexible without cable end; Screw clamp terminals 2 x 1.5…10 mm² flexible without cable end; Screw clamp terminals 1 x 1.5…16 mm² flexible with cable end; Screw clamp terminals 2 x 1.5…4 mm² flexible with cable end

Tightening torque

2.2 N.m

Product weight

0.13 kg

Number of Units in Package 1

1

Number of Units in Package 2

24

Country of origin

FR

Warranty (in months)

18

Mounting method

Direct attachment

Rated permanent current Iu

63 A

Conditioned rated short-circuit current Iq

100 kA

Short-circuit current limiter

Yes

Max. apparent power

35000 VA

HS Code

8536.90
