Schneider Electric

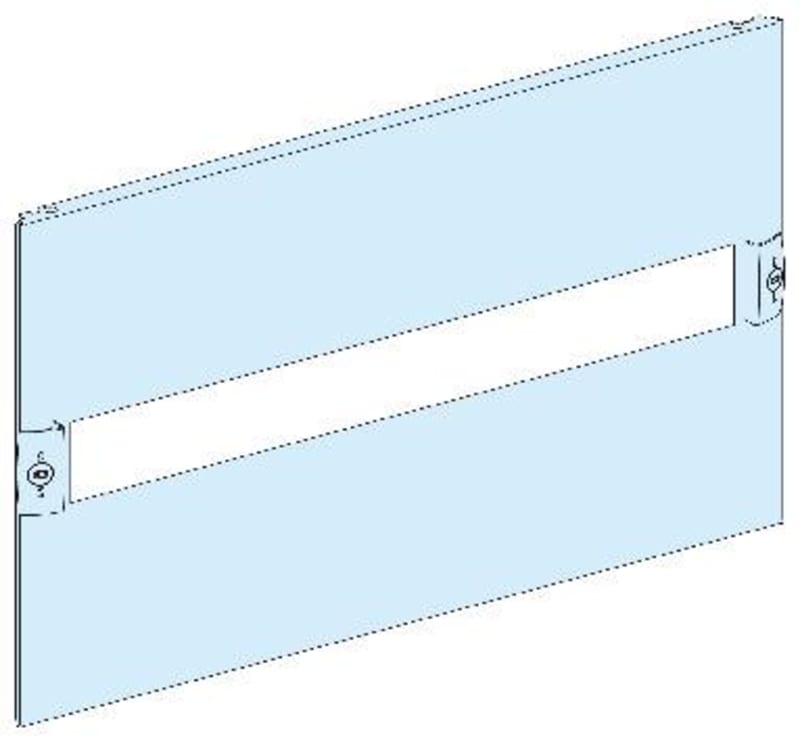

Front plate 4M modular products PrismaSeT G/P
Part numberLVS03204EAN / GTIN3606481872708HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Frontplate-4 Modules for Modular products-PrismaSeT G/P-for 600/650mm felt.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03204
- EAN / GTIN
- 3606481872708
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle; PrismaSeT PrismaSeT Pack 250 enclosure
- Type of front plate
- Cut-out; Modular
- Installed device
- Acti 9: fixed modular device; Multi9: fixed modular device; Vigilohm: IM20; Vigilohm: IM20H; ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Vigilohm: IM10; Vigilohm: IM10H
- Poles description
- 1 x 3P: modular rail support: INS100 vertical installation; 1 x 4P: modular rail support: INS100 vertical installation; 1 x 3P: modular rail support: INS125 vertical installation; 1 x 4P: modular rail support: INS125 vertical installation; 1 x 3P: modular rail support: INS160 vertical installation; 1 x 4P: modular rail support: INS160 vertical installation; 1 x 3P: modular rail support: INS40 vertical installation; 1 x 4P: modular rail support: INS40 vertical installation; 1 x 3P: modular rail support: INS63 vertical installation; 1 x 4P: modular rail support: INS63 vertical installation
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm; Pack enclosure - width 600 mm
- Connection position
- Direct connection
- 9 mm pitches
- 48
- Number of 18 mm modules per row
- 24
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 200 mm
- Product weight
- 0.72 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle Vigilohm 4 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS40 fixed direct front rotary handle vertical 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS40 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G wall-mounted enclosure ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS63 fixed direct front rotary handle vertical 3P 1 direct 4; 650 mm 400 mm PrismaSeT P cubicle ComPact INS63 fixed direct front rotary handle vertical 4P 1 direct 4; 600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device fixed 48 direct 4; 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device fixed 48 direct 4; 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device fixed 48 direct 4; 600 mm PrismaSeT G floor-standing enclosure Multi9 modular device fixed 48 direct 4; 600 mm PrismaSeT G wall-mounted enclosure Multi9 modular device fixed 48 direct 4; 650 mm 400 mm PrismaSeT P cubicle Multi9 modular device fixed 48 direct 4; 600 mm Prisma Pack 250 Pack enclosure Multi9 modular device fixed 48 direct 6
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 21.200 cm
- Package 1 Length
- 51.000 cm
- Package 1 Weight
- 722.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 14
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 11.680 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 168
- Package 3 Height
- 101.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 152.160 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Number of height units
- 4
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872708
- SAP 1200546615
- Code 82879972
