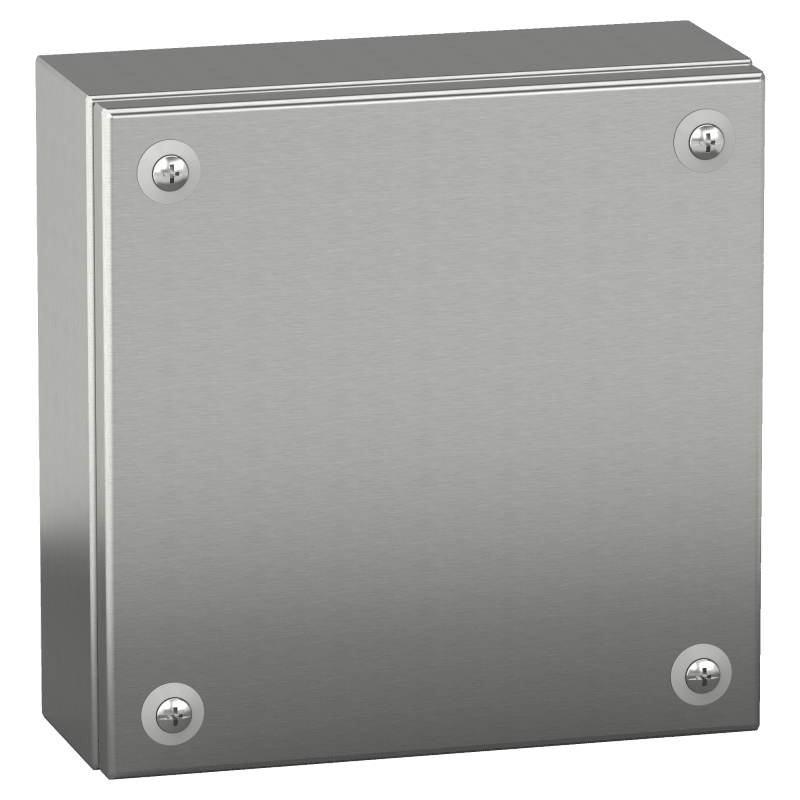

Schneider Electric Stainless steel wall mounted industrial box, PanelSeT SBX, 300X300X120 mm, IP66 NSYSBX303012
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSBX303012 — Stainless steel wall mounted industrial box, PanelSeT SBX, 300x300x120 mm, IP66.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSBX303012
- EAN / GTIN
- 3606481715197
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT SBX
- Device application
- Multi-purpose
- Category
- Industrial box
- Device short name
- SBX
- enclosure type
- Flat face box
- Enclosure nominal height
- 300 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 120 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 4 cover screw; 1 cover; 1 body
- Body type
- Single piece body folded and welded
- Type of front cover
- Plain door
- Cover fixing
- Half turn metal screw
- Lock type
- Captive screw PZ2 outside sealed area
- Removable parts
- Cover by captive screws
- Material
- Stainless steel 304L
- Surface finish
- Scotch-Brite® brushed
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; BVM; UL
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for storage
- -35…60 °C
- Operating temperature
- -35…80 °C
- Product weight
- 3.6 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 14.000 cm
- Package 1 Width
- 31.500 cm
- Package 1 Length
- 31.500 cm
- Package 1 Weight
- 3.644 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 143.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 231.520 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Shape
- Square
- RAL-number
- 7035
- Connection type
- Screwed terminal
- Length
- 300 mm
- Width
- 300 mm
- Depth
- 120 mm
- Material plate thickness cabinet
- 1.2 mm
- Mounting method
- Surface mounted
- Extension possible
- No
- Halogen free
- Yes
- Colour
- Grey
- Degree of protection (IP)
- IP66
- With cover
- Yes
- Cover attachment
- Screwed
- With transparent cover
- No
- Sealable
- Yes
- Circuit integrity
- None
- Impact strength
- IK10
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606481715197
- SAP 1200476514
- Code 82548429
