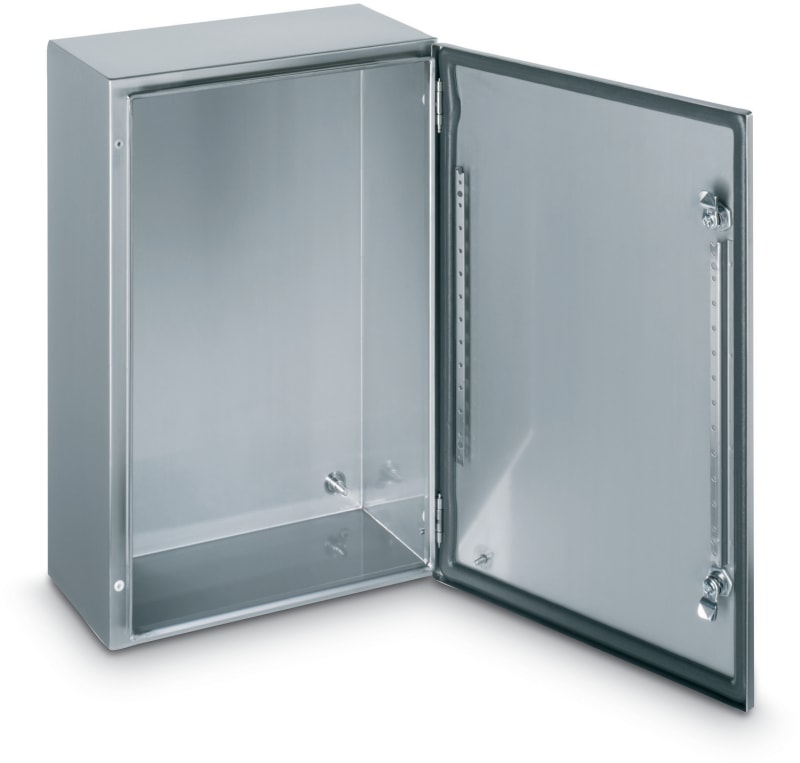

Schneider Electric NSYS3X8625 PanelSet S3X stainless 304L, Scotch Brite® finish, H800XW600XD250 mm.
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric NSYS3X8625 PanelSet S3X stainless 304L, Scotch Brite® finish, H800XW600XD250 mm. is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Range: Spacial; Product name: Spacial S3X; enclosure type: Multi-purpose; nominal height: 800 mm; nominal width: 600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3X8625
- EAN / GTIN
- 3606480155291
- Sales unit
- pcs
- Range
- Spacial
- Product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 800 mm
- nominal width
- 600 mm
- nominal depth
- 250 mm
- product installation
- Wall-mounting
- Device composition
- 1 body; 1 door; 2 lock: door; 2 perforated vertical profile drilled: door
- Body type
- Single piece body, cross-shaped structure; Gutter shaped front rail
- Door type
- Plain
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 2 points lock, 3 mm double-bar
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Body and door: stainless steel 304L; Lock: zamak; Hinge: stainless steel
- Surface finish
- Body and door: Scotch-Brite® brushed; Lock: chromium plated
- Product weight
- 22.474 kg
- Standards
- IEC 62208; UL; CUL
- Product certifications
- CAN/CSA 22; UL 508 type A
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Specific hygiene; Corrosive
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 27.000 cm
- Package 1 Width
- 61.500 cm
- Package 1 Length
- 82.000 cm
- Package 1 Weight
- 20.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 196.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 253.000 kg
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 600 mm
- Height
- 800 mm
- Depth
- 250 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
