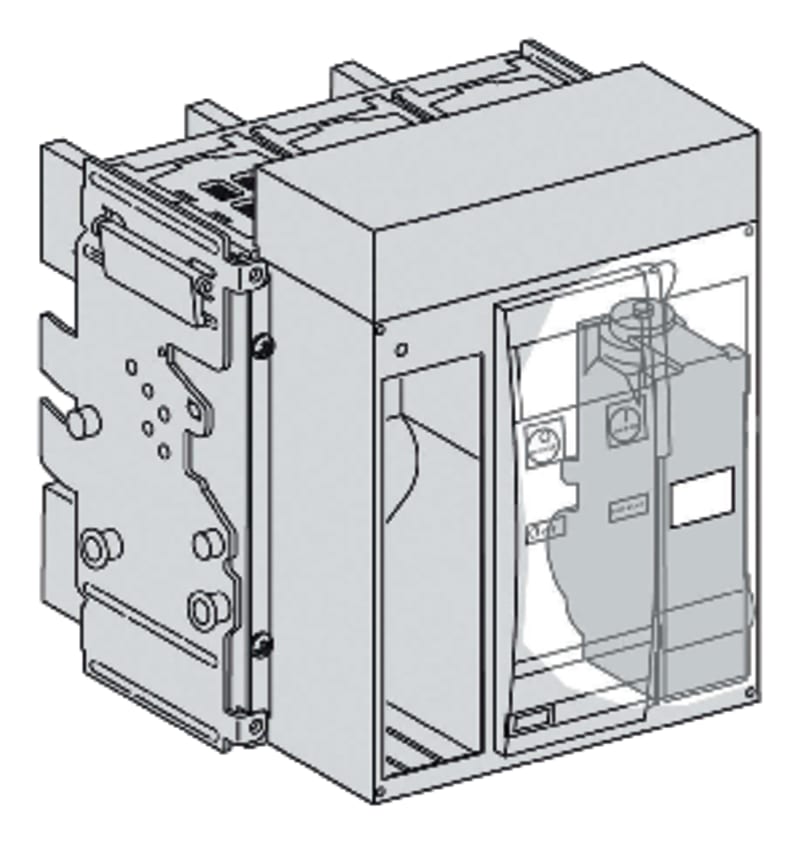

Schneider Electric circuit breaker basic frame, ComPact NS 1000L, 150 kA at 415 VAC, 1000 A, withdrawable, electrically operated, without trip unit, 3 P

Schneider Electric 33392 NS1000 L 3P Withdrawable With Motor.

Manufacturer part number (MPN)

33392

EAN / GTIN

3303430333920

Sales unit

pcs

Number of poles

3P

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation

Device short name

Compact NS1000L

Product or component type

Basic frame

Device application

Distribution

[In] rated current

1000 A at 50 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

150 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 150 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 130 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

L 150 kA 415 V AC

Control type

Electrically operated; Motor mechanism with external connector

mounting mode

Drawout

[Ui] rated insulation voltage

1000 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

150 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 150 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 130 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 100 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation)

Mechanical durability

10000 cycles conforming to IEC 60947-2

Electrical durability

2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 3000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 3000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 4000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2

Power losses

77 W

Mounting support

Backplate

Connection pitch

70 mm

Protection type

Without protection

Height (H)

327 mm

Width (W)

210 mm

Depth (D)

147 mm

Standards

IEC 60947-2

Product certifications

ASTA; LCIE; ASEFA

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60947

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to EN 50102

Ambient air temperature for storage

-50…85 °C

Ambient air temperature for operation

-25…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

36.0 cm

Package 1 Width

40.0 cm

Package 1 Length

23.0 cm

Package 1 Weight

16.664 kg

Warranty (in months)

18

Rated permanent current Iu

1000 A

With integrated under voltage release

No

Rated voltage

690 V

Power loss

231 W

Degree of protection (IP)

IP40

Position of connection for main current circuit

Front side

Motor drive integrated

Yes

Type of electrical connection of main circuit

Bolt connection

Type of control element

Push button

With switched-off indicator

Yes

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

150 kA

Suitable for DIN rail (top hat rail) mounting

No

Integrated earth fault protection

No

Motor drive optional

No

Device construction

Built-in device slide-in technique (withdrawable)

DIN rail (top hat rail) mounting optional

No

Complete device with protection unit

No

Country of origin

France

HS Code

8536.20
