Converter In/V+ma- U/ V+ma

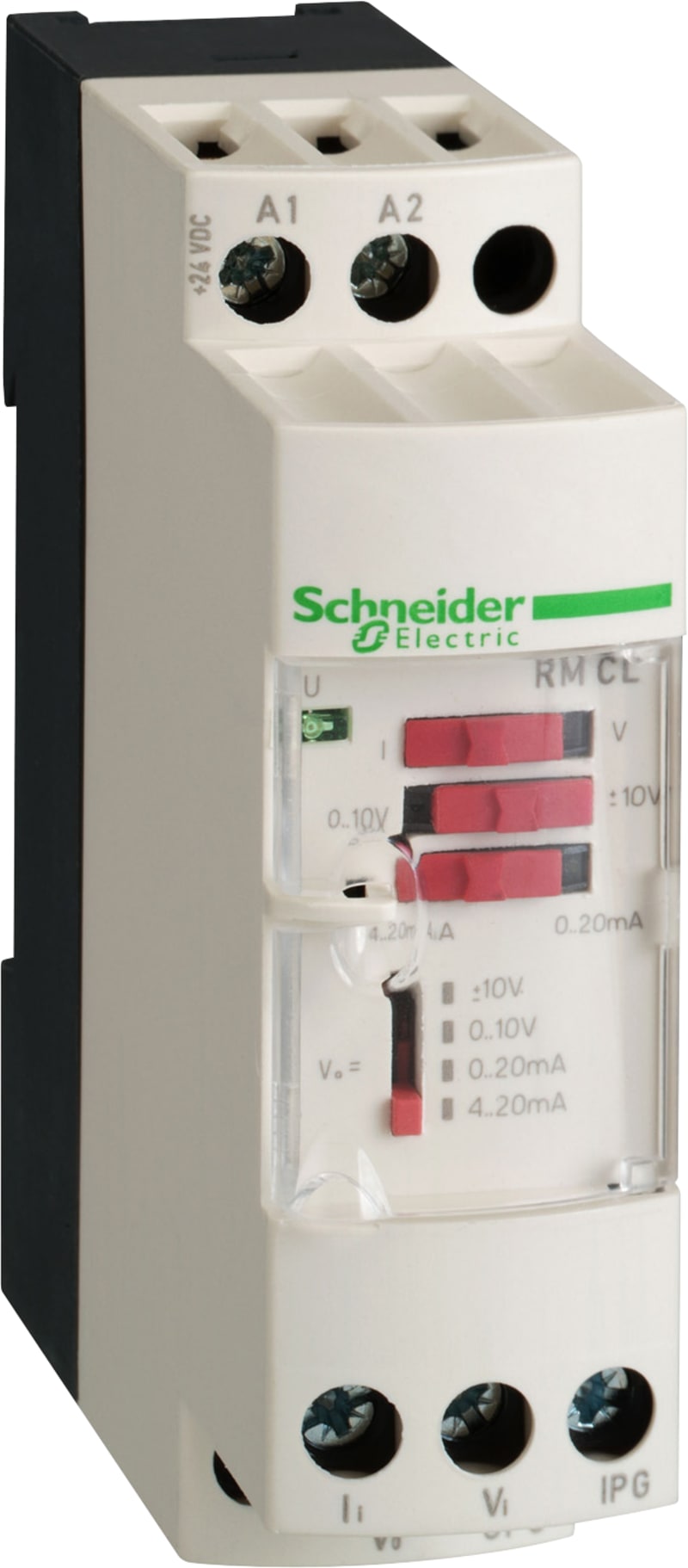

Schneider Electric RMCL55BD Converter In/V+mA- U/ V+mA.

Manufacturer part number (MPN)

RMCL55BD

EAN / GTIN

3389110108897

Sales unit

pcs

Package quantity

47 pcs

Range of product

Harmony Analog

Product or component type

Voltage/current converter

Analogue input type

Current 0...20 mA; Current 4...20 mA; Voltage +/- 10 V DC; Voltage 0...10 V DC

Analogue output type

Current 0...20 mA = 100 kOhm switchable; Voltage 0...10 V >= 100 kOhm switchable

Protection type

Reverse polarity protection on output; Short-circuit protection on output; Overvoltage protection on output (+/- 30 V)

abnormal analogue output voltage

11...15 V, output selected - 10...10 V no input or input wire broken voltage; 11...15 V, output selected 0...10 V no input or input wire broken voltage; -15...0 V, output selected 0...20 mA no input or input wire broken current; -15...0 V, output selected 4...20 mA no input or input wire broken current

abnormal analogue output current

22…30 mA, output selected 0...20 mA no input or input wire broken voltage; 22…30 mA, output selected 4...20 mA no input or input wire broken voltage; -30…0 mA, output selected 0...20 mA no input or input wire broken current; 4…30 mA, output selected 4...20 mA no input or input wire broken current

[Us] rated supply voltage

24 V DC +/- 20 %, isolated

Current consumption

<= 70 mA for voltage output; <= 90 mA for current output

Local signalling

LED (green) for power ON

Tightening torque

0.6…1.1 N.m

Marking

CE

Surge withstand

0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5

[Ui] rated insulation voltage

2 kV

Fixing mode

By screws (mounting plate); Clip-on (35 mm symmetrical DIN rail)

Safety reliability data

B10d = 20000; MTTFd = 21.6 years

Product weight

0.12 kg

Standards

IEC 60947-1; IEC 60584-1

Product certifications

UL; GL; CSA

Fire resistance

850 °C conforming to IEC 60695-2-1; 850 °C conforming to UL

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

6 kV (in contact) conforming to IEC 61000-4-2 level 3; 8 kV (in air) conforming to IEC 61000-4-2 level 3

Resistance to fast transients

1 kV (on input-output) conforming to IEC 61000-4-4; 2 kV (on power supply) conforming to IEC 61000-4-4

Disturbance radiated/conducted

CISPR 22 group 1 - class B; CISPR 11

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…50 °C mounting side by side; 0…60 °C 2 cm spacing

Pollution degree

2 conforming to IEC 60664-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.100 cm

Package 1 Width

8.300 cm

Package 1 Length

8.600 cm

Package 1 Weight

118.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

47

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.140 kg

Country of origin

ID

Warranty (in months)

18

Model

Through-feed current converter

Rated primary current

0.02 A

Rated secondary current

0.02 A

Overcurrent limiting factor

FS 10

Calibrated

Yes

With contact protection

Yes

Height opening

90 mm

Width opening

31 mm

Snap mounting

Yes

With copper rail

Yes

Number of primary inputs

1

Secondary connection

Screw connection

HS Code

8517.62

• EAN 3389110108897
• SAP 1000060710
• Code 8870421
