TERMINALS-4 pcs Cu/Al 160A 70 mm²-LINERGY BS
Pricing
Request a quote
We reply within 24 hours
Product Description

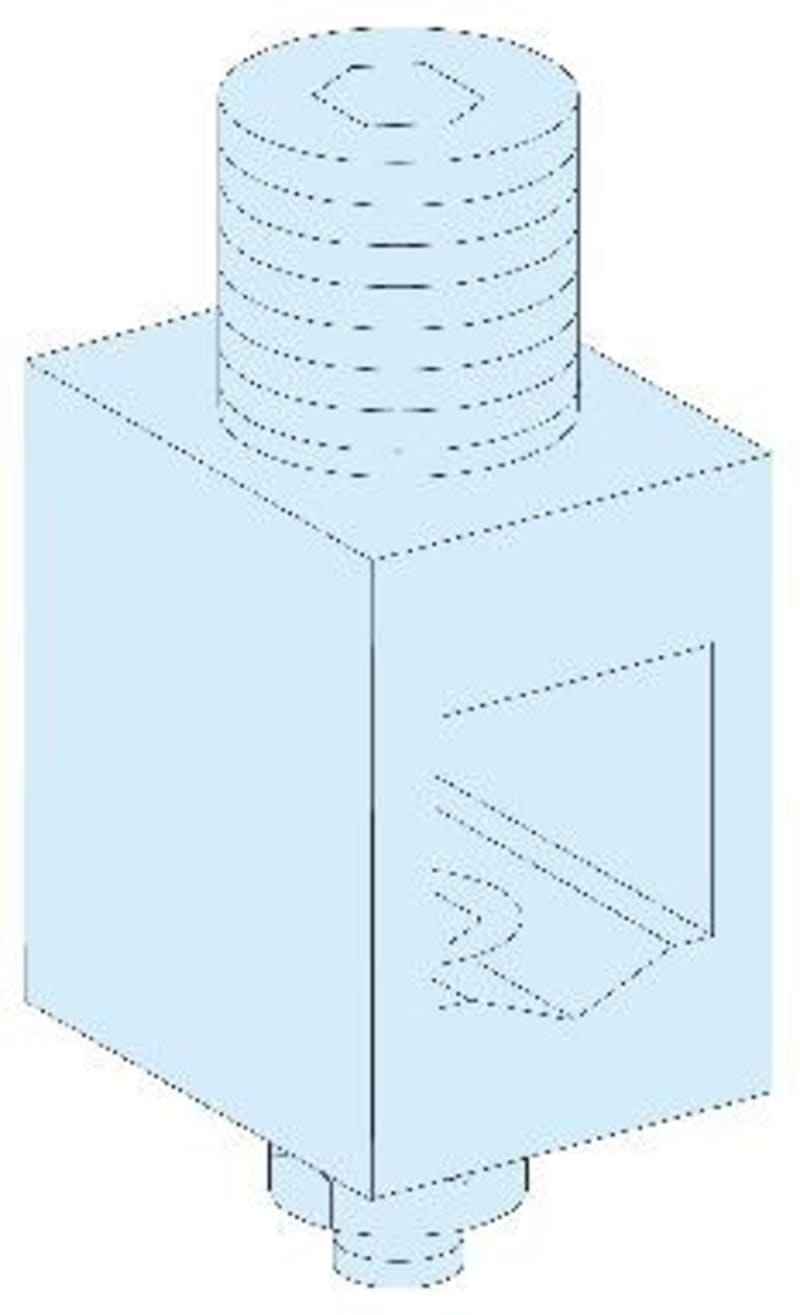

Schneider Electric LVS07051 Terminals-4 pcs Cu/Al 160A 70mm2-Linergy BS rails-PrismaSeT.
Technical Specifications
- Manufacturer part number (MPN)
- LVS07051
- EAN / GTIN
- 3606481884855
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Rated current
- 160 A
- Conductor cross-section
- 70 mm²
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connector for cable
- Product name
- Linergy BS
- Accessory / separate part category
- Connection accessory
- Range compatibility
- Linergy Linergy BS busbar; PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Product compatibility
- M6 drilled busbar
- Poles description
- 1P
- Enclosure/cubicle description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- [Ie] rated operational current
- 180 A
- Connections - terminals
- Screw terminal70 mm² rigid
- Conductor material
- Copper; Aluminium
- Quantity per set
- Set of 4
- Height
- 30 mm
- Width
- 20 mm
- Depth
- 23 mm
- Product weight
- 0.19 kg
- Colour
- Natural
- Warranty (in months)
- 18
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481884855
- SAP 1200547206
- Code 82879713
