Form 2 Avdekn. Hor.Rail-bottom B400 D400
Pricing
Request a quote
We reply within 24 hours
Product Description

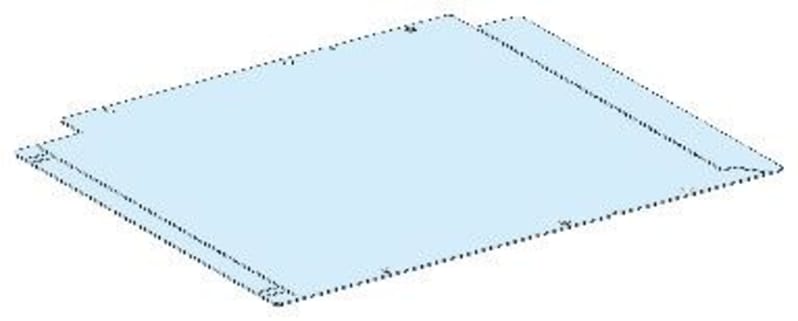

Schneider Electric LVS04915 Form 2 Cover- for Horizontal Rail-bottom-mounted in 400mm deep and 400mm wide PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04915
- EAN / GTIN
- 3606481880277
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Plain barrier
- Accessory / separate part category
- Insulation accessory
- Range compatibility
- PrismaSeT PrismaSeT P framework
- Cubicle partitioning form
- Form 2
- installation description
- Cubicle duct - width 400 mm, depth 400 mm; Cubicle duct - width 300 mm, depth 400 mm
- Installed device
- Horizontal busbar
- Quantity per set
- Set of 1
- Width
- 320 mm
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Product weight
- 0.58 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.200 cm
- Package 1 Width
- 34.500 cm
- Package 1 Length
- 41.500 cm
- Package 1 Weight
- 580.000 g
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 40
- Package 2 Height
- 27.000 cm
- Package 2 Width
- 60.000 cm
- Package 2 Length
- 80.000 cm
- Package 2 Weight
- 29.500 kg
- Unit Type of Package 3
- BB1
- Number of Units in Package 3
- 40
- Package 3 Height
- 12.200 cm
- Package 3 Width
- 41.000 cm
- Package 3 Length
- 61.000 cm
- Package 3 Weight
- 23.771 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481880277
- SAP 1200547176
- Code 82879898
Product Documentation
