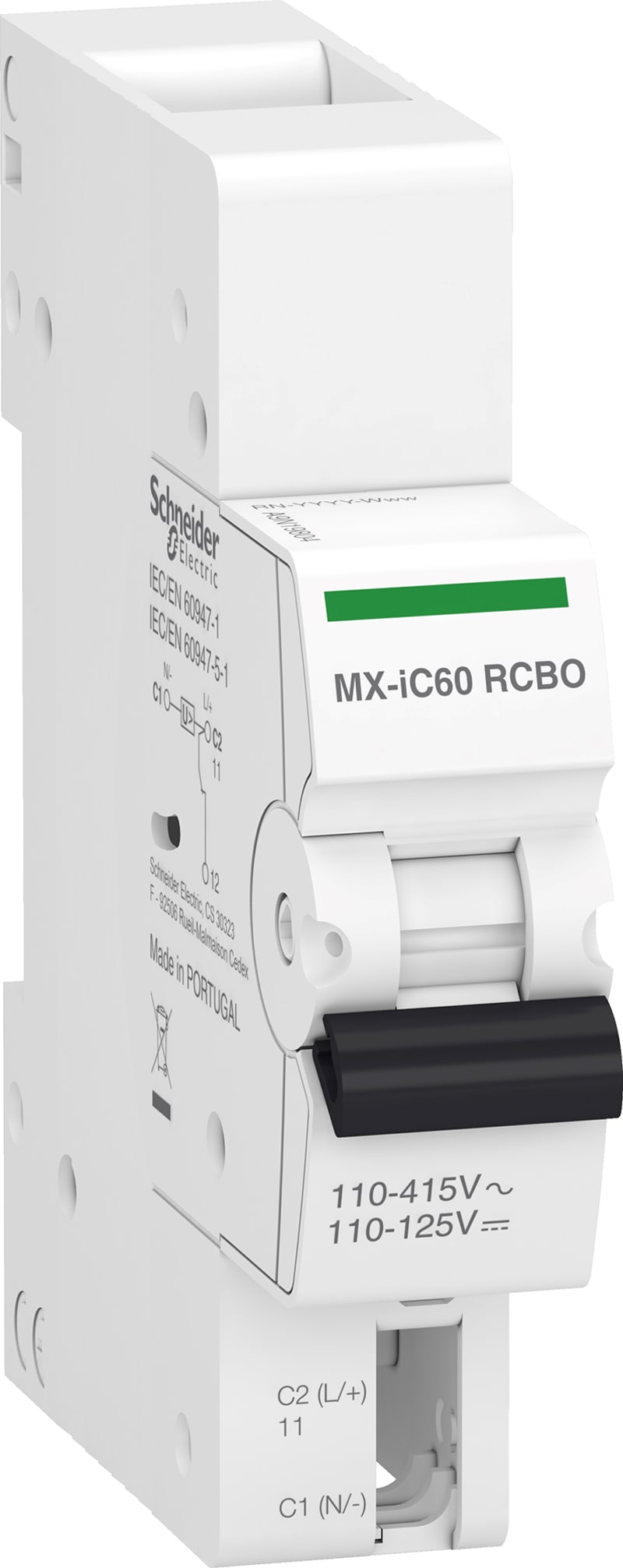

Schneider Electric Acti9 A9A19805 MX Shunt Trip Release for iC60 RCBO, 110-415 V AC

Schneider Electric A9A19805 is an Acti9 MX shunt trip release for the iC60 RCBO, with a 110-400 V AC 50 Hz / 110 V DC control circuit and one NC signal contact. The 2-module DIN-rail unit provides remote tripping via a momentary control voltage. It is used to enable remote or supervisory tripping of Acti9 residual-current breakers in commercial and industrial distribution boards.

Manufacturer part number (MPN)

A9A19805

EAN / GTIN

3606489596040

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

range of product

Acti9

Product or component type

Shunt trip release

Device short name

MX

Signal contacts composition

1 NC

[In] rated current

3 A at 400 V, AC 50 Hz; 6 A at 230 V, AC 50 Hz; 1.5 A at 110 V, DC

[Uc] control circuit voltage

110...400 V AC 50 Hz; 110 V DC

Threshold tripping voltage

0.7...1.1 Un

Control type

Toggle

9 mm pitches

2

Range compatibility

Acti9 iC60 RCBO

Inrush current

0.22 A at 110 V AC/DC; 0.84 A at 400 V AC

mounting mode

Clip-on

Mounting support

DIN rail

Height

80 mm

Width

20 mm

Depth

98 mm

Product weight

62 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Screw clamp terminal (bottom) - 1 cable(s) 0.75…2.5 mm² - rigid; Screw clamp terminal (bottom) - 1 cable(s) 0.75…2.5 mm² - flexible; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - rigid; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom) - 1 cable(s) 2.5 mm² - flexible with ferrule; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule

Wire stripping length

6 mm for bottom connection

Tightening torque

0.6 N.m bottom

Standards

EN/IEC 60947-2

IP degree of protection

IP2

Pollution degree

2

Overvoltage category

III

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

36

Warranty (in months)

18

HS Code

8536.90

• EAN 3606489596040
• SAP 1200501112
• Code 82624746
