Schneider Electric Connection Horiz. LGYE MTZ2/NW 3200A 3P Prisma P LVS04497
Pricing
Request a quote
We reply within 24 hours
Product Description

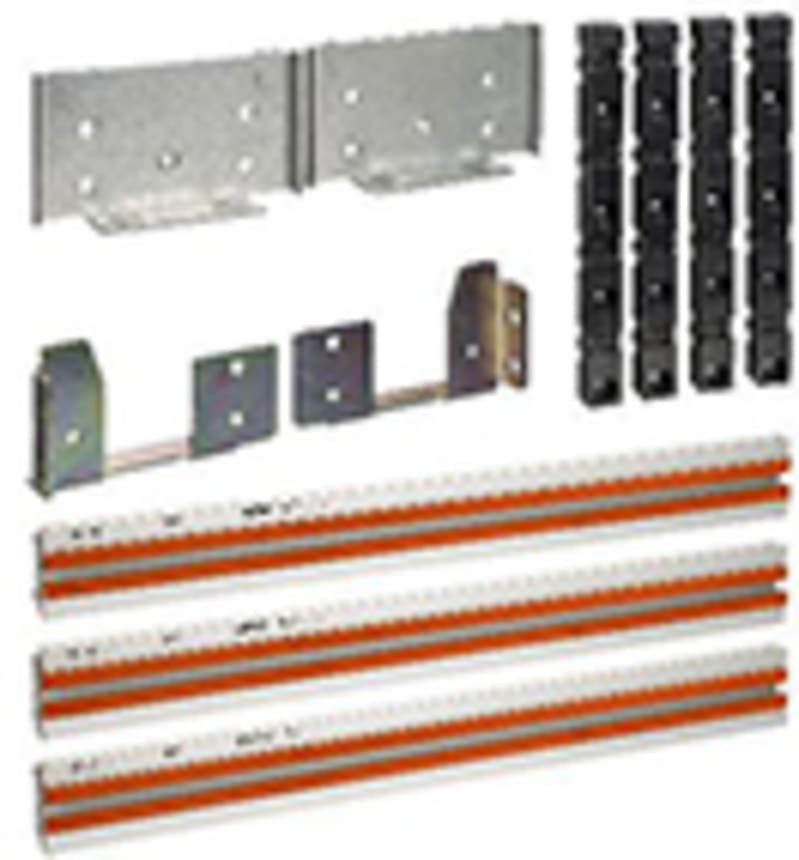

Schneider Electric LVS04497 Horizontal connection LGYE for MTZ2 3200A 3P PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04497
- EAN / GTIN
- 3606481884497
- Sales unit
- pcs
- Rated current
- 3200 A
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure; Masterpact MasterPact NW
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- connection transfer assembly
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Cubicle depth
- 600 mm: front; 600 + 400 mm: rear
- Installed device
- Masterpact: drawout NW32 - control: toggle vertical installation - bottom connection; Masterpact: fixed NW32 - control: toggle vertical installation - bottom connection
- [Ie] rated operational current
- 3200 A
- Length
- 580 mm
- Quantity per set
- Set of 1
- functional unit
- 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on adaptor 36; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 rear connection on adaptor 15; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on adaptor 20; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 rear connection on Canalis 17; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 drawout toggle vertical 3P 1 front connection on busbar 36; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on adaptor 19; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 rear connection on adaptor 14; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on Canalis 28; 650 mm 1000 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 600 mm PrismaSeT P cubicle Masterpact NW32 fixed toggle vertical 3P 1 front connection on busbar 36
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- With cover
- No
- Max. rated current
- 3200 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481884497
- SAP 1200546950
- Code 82880711
Product Documentation
More from Schneider Electric
Schneider Electric
WALL-Mount Cabinet S3D without PL 8X8X3
NSYS3D8830
Schneider Electric
Schneider Electric suppressor module - RC circuit - 220 V AC LA9D09980
Schneider Electric
Innstillingsmodul-reserve-ATS-rotary handle (TPCCIF02)
Schneider Electric
NG125L/D 63-4 Modular Power Switch
18864
Schneider Electric
WALL-Mount Cabinet WITH PLATE. 12X8X4
NSYS3D12840P
Schneider Electric
EKST.CTJORDF.400/1600 TCE MTZ1
LV833576SP
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 3kW, 400 to 480V, with braking unit, IP21 ATV930U30N4
Schneider Electric

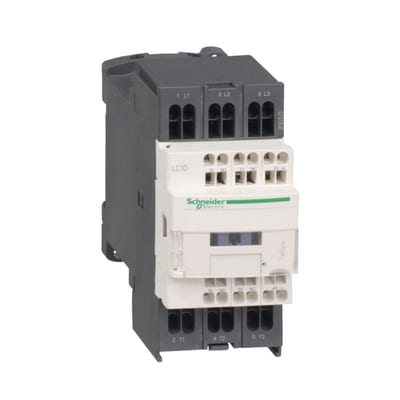

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 38A, 230V AC 50/60Hz coil, spring terminals LC1D383P7
