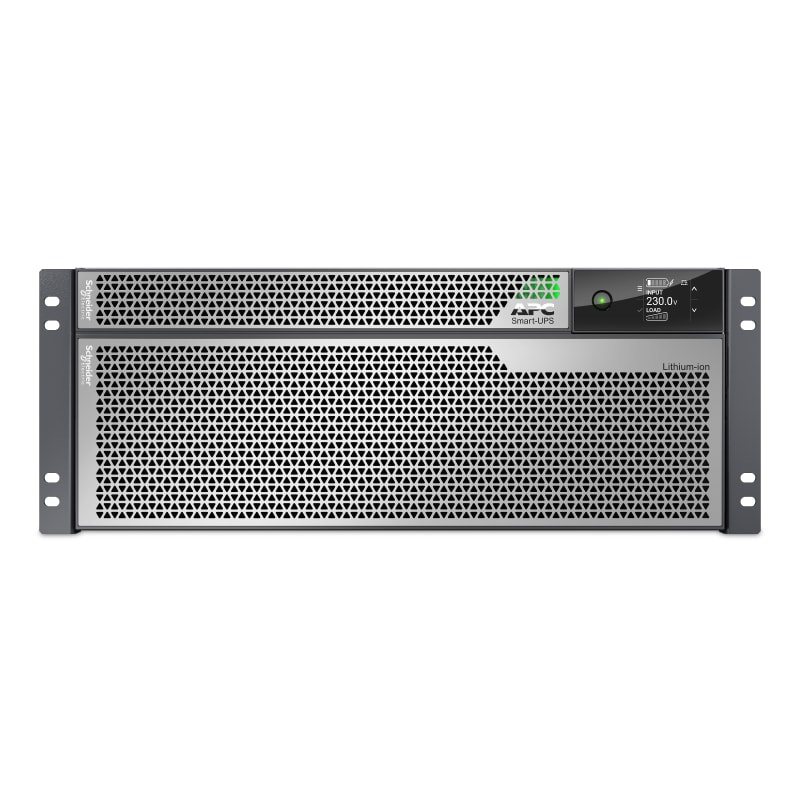

APC UPS SRTL Ultra 10KVA 4U

Schneider Electric SRTL10KRM4UI APC UPS SRTL Ultra Li-Ion 10kVA 4U Rack/Tower, 230V, in:.

Manufacturer part number (MPN)

SRTL10KRM4UI

EAN / GTIN

0731304578505

Sales unit

pcs

Main input voltage

220 V AC 1 phase; 230 V AC 1 phase; 240 V AC 1 phase

Other input voltage

220...240 V

Input connection

Hard Wire 3-wire 55 A

Input frequency

40...70 Hz auto-sensing

Output voltage

220 V AC 1 phase; 230 V AC 1 phase; 240 V AC 1 phase

Other output voltage

220/230/240 V

Rated power in W

10000 W

Rated power in VA

10000 VA

Output connection

6 IEC 60320 C13; 6 IEC 60320 C19

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

10000 VA

Maximum configurable power in W

10000 W

UPS topology

On-Line

Waveform type

Its wave

Full load runtime

00:05:00 10000 W

Half load runtime

00:11:00 5000 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Li-Ion (Lithium-Ion) internal included

Control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slot

1

Preinstalled device

Network management card with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

UPS connectivity

Serial port; USB port; Available expansion slot; Embedded network management card 3

Surge energy rating

1410 J

Number of rack unit

4U

Number of cables

1

Color

Silver grey

Height

175 mm

Width

432 mm

Depth

832 mm

Product weight

55 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted with kit; Tower-mounted with kit

USB compatible

Yes

Mounting position

Horizontal; Vertical

Provided equipment

Temperature probe; USB cable; Stabilization feet; Strain relief; Rack mounting hardware

Number of power module free slots

0

Additional specification

High density

Redundant

No

Range of product

Smart-UPS Ultra

Product or component type

Uninterruptible power supply (UPS)

Product certification

VDE

Marking

CE Mark; UKCA

Standard

EN/IEC 62040-1; EN/IEC 62040-2; IEC 62040-2

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

55 dB

Heat dissipation

1900 Btu/h

Operating altitude

0...10000 ft

Battery voltage

180 V

Extendable runtime

1

Included battery module

0

Empty battery slot

0

Typical recharge time

1.5 h

RBC quantity

2

Battery life

5…10 year(s)

Battery charging power

1200 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

63 cm

Package 1 Width

65 cm

Package 1 Length

100 cm

Package 1 Weight

88.5 kg

SCC14

10731304578502

Country of origin

PH

Warranty (in months)

60

HS Code

8504.40

• EAN 0731304578505
• SAP 1200723208
• Code 83837002
