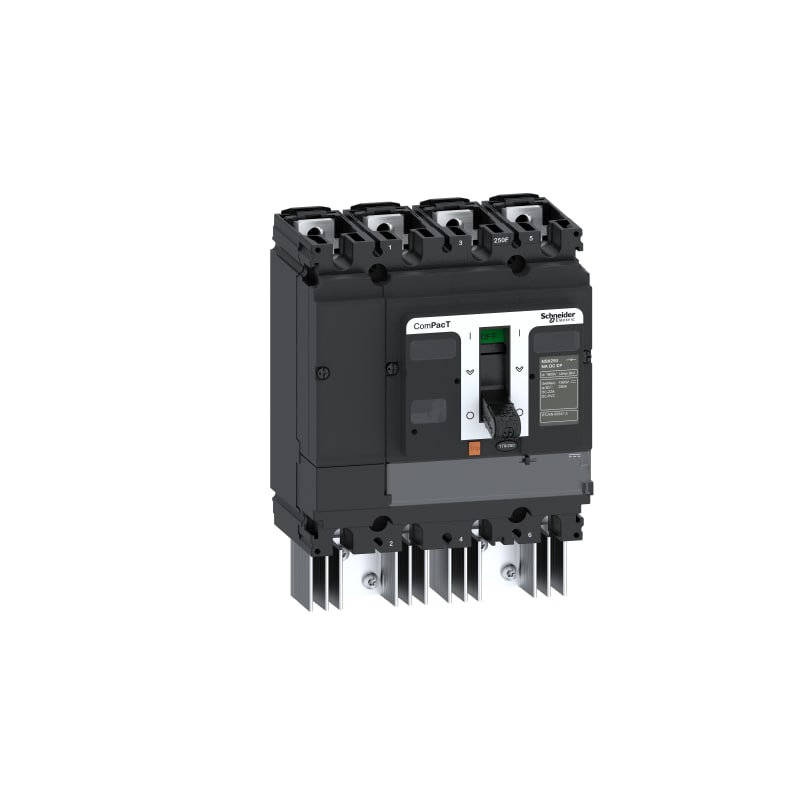

Schneider Electric Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 100A rating, 1500V C254100D3S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C254100D3S Load-break switch NSX250 NA DC EP 4P 100A - 1500V DC.
Technical Specifications
- Manufacturer part number (MPN)
- C254100D3S
- EAN / GTIN
- 3606481988652
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 100 A
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX DC EP
- Device short name
- NSX250 DC EP
- Product or component type
- Switch disconnector
- Device application
- Photovoltaic; Marine application
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 100 A at 40 °C
- [Ie] rated operational current
- DC-22A: 100 A DC 1500 V; DC-PV2: 100 A DC 1500 V
- [Ue] rated operational voltage
- 1500 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- DC-22A; DC-PV2
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 3.5 kA during 1 s
- [Icm] rated short-circuit making capacity
- 3.5 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 1600 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Mechanical durability
- 10000 cycles
- Electrical durability
- 4500 cycles 1500 V DC In
- Width (W)
- 140 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Product weight
- 2.8 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- Product certifications
- CE; CCC
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481988652
- SAP 1200722364
- Code 83837171
