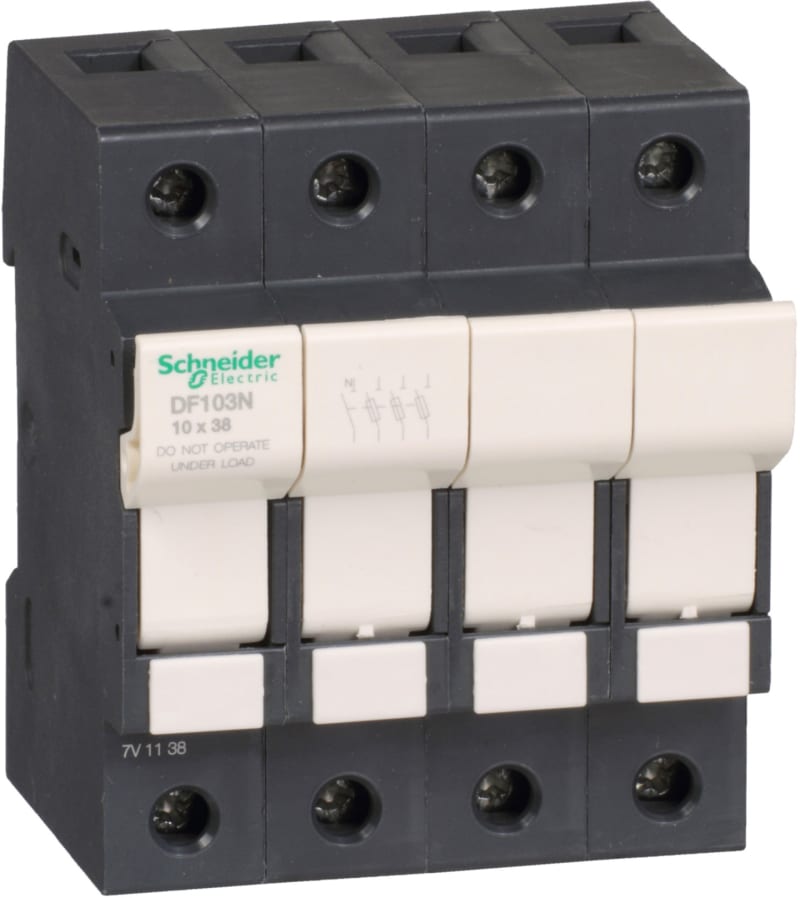

Schneider Electric Fuse carrier TeSys DF, 3P+N 32A, fuse size 10X38 mm DF103N

Schneider Electric DF103N TeSys - porte-fusible - 3P/N - 32A - pour fusible 10x38mm.

Manufacturer part number (MPN)

DF103N

EAN / GTIN

3389119407250

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Rated current

32 A

Number of poles

3P+N

Range

TeSys

Product name

TeSys DF

Product or component type

Fuse carrier

Device short name

DF10

Device composition

tubular link for locked in Neutral pole

Product compatibility

DF2CA fuse cartridge; DF2CN fuse cartridge

Poles description

3P + N

Fuse size

10 x 38 mm

Fuse type

0…32 A, gG; 0…32 A, aM

Control type

Toggle padlockable

Utilisation category

AC-20B conforming to IEC 60947-3; DC-20B conforming to IEC 60947-3

[Ue] rated operational voltage

690 V AC; 690 V DC

[Ie] rated operational current

32 A at 400 V AC

[Ith] conventional free air thermal current

32 A 20 °C

[Ui] rated insulation voltage

690 V AC

[Uimp] rated impulse withstand voltage

6 kV

Overvoltage category

III

Short-circuit withstand

120 kA 400 V conforming to IEC 60947-3; 120 kA 500 V conforming to IEC 60947-3

Power dissipation in W

3 W maximum power dissipation by fuse

Standards

EN/IEC 60947-3; EN/IEC 60269-2; UL 4248-1; CSA C22.2 No 4248-1; EN 45545-2: R22 HL2

Product certifications

IEC; UL recognized; CSA; CCC; EAC; DNV-GL

Mounting support

35 mm symmetrical DIN rail

Mounting position

Vertical (tolerance: +/- 23°)

Connections - terminals

Screw clamp terminals 1 cable(s) 1…16 mm²rigid; Screw clamp terminals 2 cable(s) 1…6 mm²rigid; Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without; Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without

Tightening torque

2.2 N.m - with screwdriver PZ2; 2.2 N.m - with screwdriver flat Ø 5.5 mm

Height

79.5 mm

Width

70 mm

Depth

61 mm

Product weight

0.171 kg

Quantity per set

Set of 3

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C with derating above 20°C

Operating altitude

0...2000 m

IP degree of protection

IP20

Pollution degree

3

Fire resistance

960 °C conforming to IEC 60695-2-1

Compatibility code

DF10

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3389119407250
• SAP 1000260384
• Code 81146159
