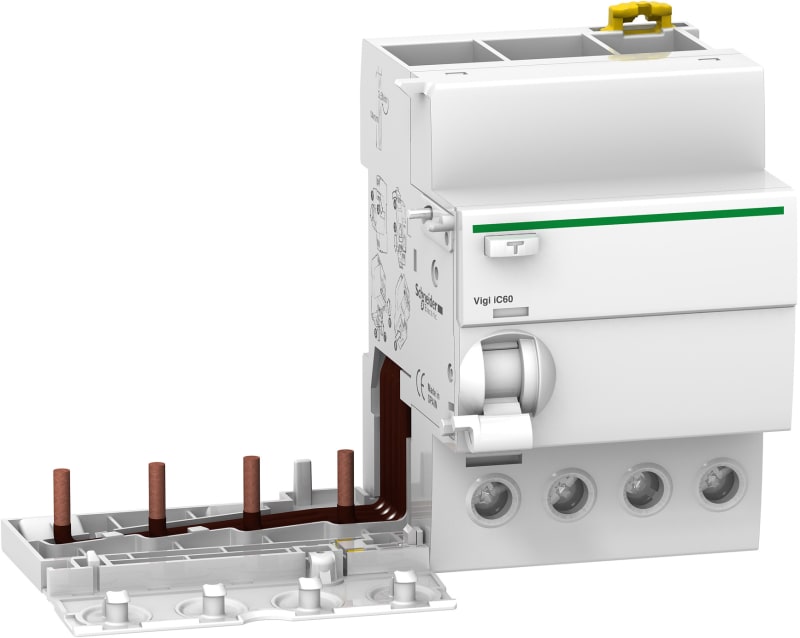

Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 4P, 63A, A type, instantaneous, 100MA, 230...415VAC A9V22463

Schneider Electric A9V22463 Vigi iC60L - residual current module - 4P - 63A - 100mA - A-type.

Manufacturer part number (MPN)

A9V22463

EAN / GTIN

3606480091056

Sales unit

pcs

Package quantity

15 pcs

Rated current

63 A

Number of poles

4P

Range

Acti9

Product name

Acti9 Vigi iC60

Product or component type

Add-on residual current device

Device short name

Vigi iC60

Poles description

4P

[In] rated current

63 A

Earth-leakage sensitivity

100 mA

Earth-leakage protection time delay

Instantaneous

Earth leakage protection type

Type A

Network type

AC

Network frequency

50/60 Hz

[Ue] rated operational voltage

230...415 V AC 50/60 Hz conforming to EN/IEC 61009-1; 230...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1

Standards

EN/IEC 61009-1; EN/IEC 61009-2-1

9 mm pitches

7

Device location in system

Outgoer

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Range compatibility

Acti9 iC60; Acti9 Reflex iC60

Product compatibility

Single terminal

Local signalling

Trip indicator

mounting mode

Clip-on

Mounting support

DIN rail

Electrical connection to mcb

By screws

Comb busbar and distribution block compatibility

Bottom: YES

Height

91 mm

Width

135 mm

Depth

73.5 mm

Product weight

0.245 kg

Connections - terminals

Tunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable end; Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable end; Tunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable end

Wire stripping length

14 mm for bottom connection

Tightening torque

3.5 N.m bottom

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947-2

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to IEC 61009-1

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Power loss

2.3 W

Nominal voltage

230–415 V

Nominal current

63 A

Rated fault current adjustable

No

Rated fault current

0.1 A

Delay adjustable

No

Leakage current type

A

Surge current capacity

0.25 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Connectable conductor cross section solid-core

1–35 mm²

Connectable conductor cross section multi-wired

1–25 mm²

Anti-nuisance tripping version

No

With interlocking device

No

Degree of protection (IP)

IP20

Ambient temperature during operating

-25–60 °C

Country of origin

France

HS Code

8536.30
