Flexicable flange 445X130
Pricing
Request a quote
We reply within 24 hours
Product Description

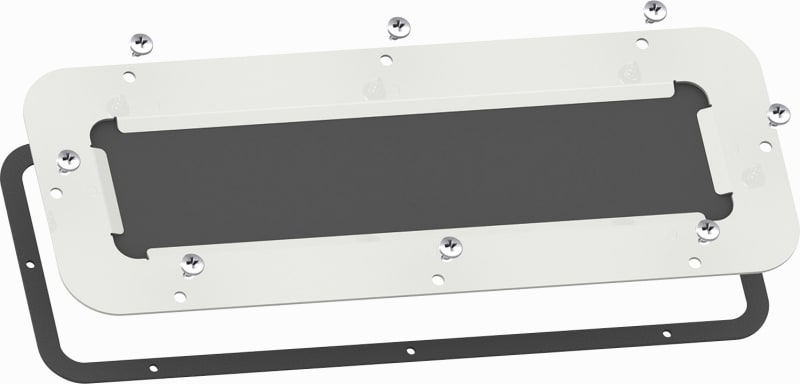

Schneider Electric NSYTLEME Flexicable flange 445x130.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTLEME
- EAN / GTIN
- 3606480467653
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Flexicable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT S3D; PanelSeT PanelSeT CRNG
- Mounting location
- Enclosure bottom
- Cable gland type
- Pierceable by screwdriver
- Type of gland plate
- Membrane
- Cable outer diameter
- 10…26 mm
- Cable entry
- Without
- Device composition
- 1 plate; membrane
- Quantity per set
- Set of 1
- Material
- Plate: steel; Membrane: HCE (heat curable elastomer)
- Colour
- Plate: grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Height
- 30 mm
- Width
- 445 mm; Real: 460 mm
- Depth
- 130 mm
- Product weight
- 0.882 kg
- thickness
- 1.5 mm
- Number of cut-out
- Undrilled
- Cut-out dimensions
- 378 x 63 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 13.500 cm
- Package 1 Length
- 46.000 cm
- Package 1 Weight
- 964.000 g
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 90
- Package 2 Height
- 49.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 97.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cable screw gland
- Surface protection
- Untreated
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480467653
- SAP 1000402079
- Code 81113237
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 3 poles, TMD trip unit 80A, lugs/busbars C11B3TM080B
Schneider Electric
Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,25A,230V AC coil,1NC auxiliary contact LC1E2501P7
Schneider Electric
APC Replacements Battery
RBC17
Schneider Electric

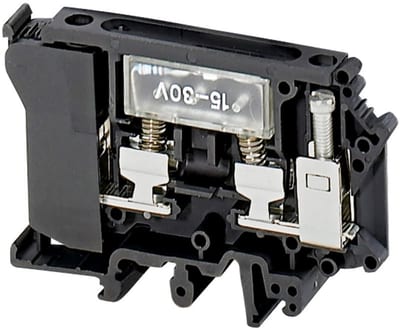

Sikrkl, 6,3X32 16mm²with led 24V
NSYTRV42SF6LD
Schneider Electric

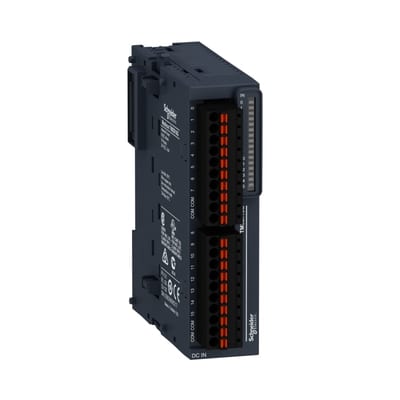

Schneider Electric Modicon TM3 - 16 inputs (spring) 24VDC TM3DI16G
Schneider Electric

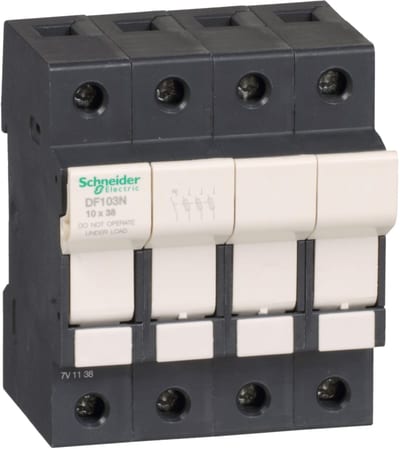

Schneider Electric Fuse carrier TeSys DF, 3P+N 32A, fuse size 10X38 mm DF103N
Schneider Electric

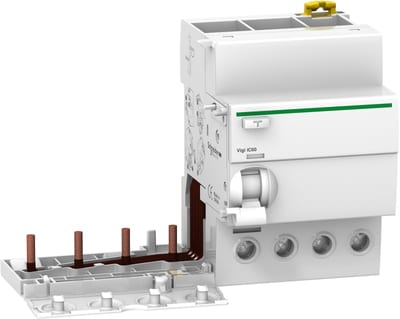

Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 4P, 63A, A type, instantaneous, 100MA, 230...415VAC A9V22463
Schneider Electric

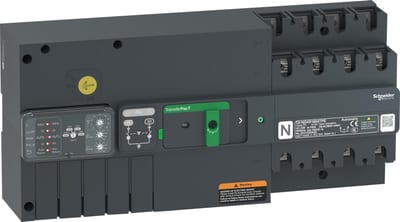

Schneider Electric transfer switch, TransferPacT automatic, 125A, 400V, 4P, rotary,frame 160A TA16D4S1254TPE
