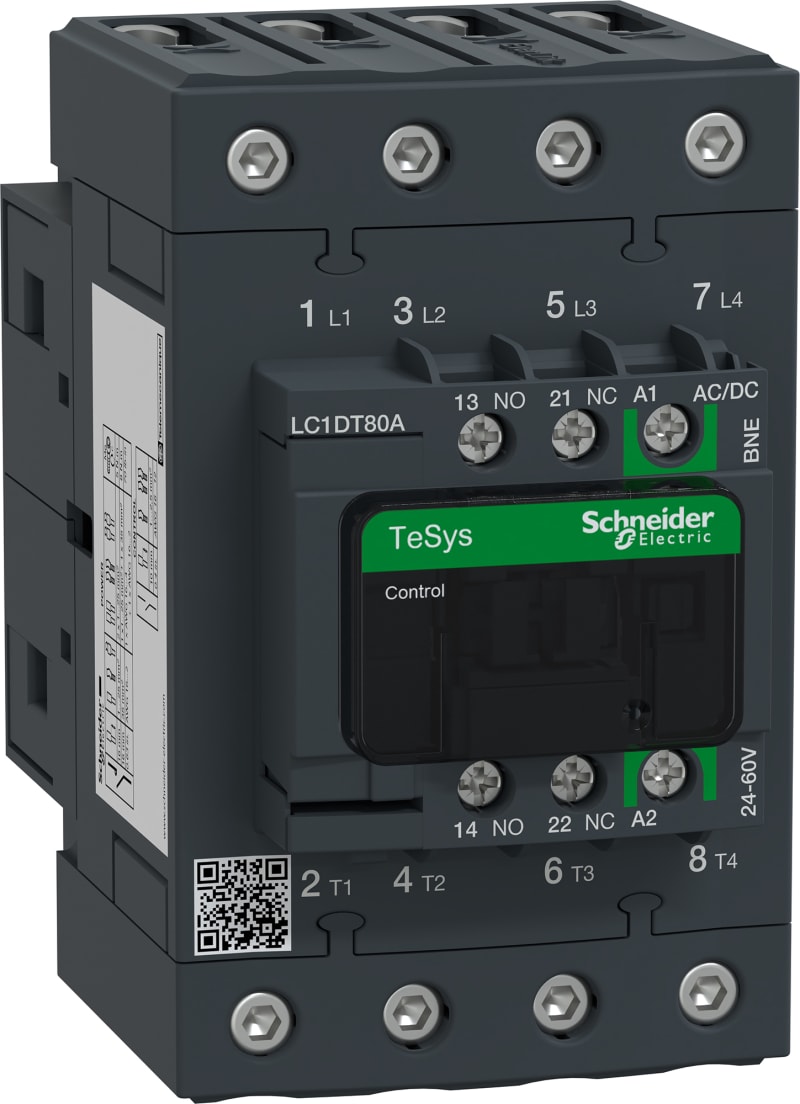

Schneider Electric Contactor, TeSys Deca Advanced, 4P(4NO), AC-1, <=440V, 80A, 24...60V AC/DC coil, EverLink BTR screws LC1DT80ABNE

Schneider Electric LC1DT80ABNE — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. TeSys D contactor 4P 80A AC-1 up to 440V coil 24-60V AC / DC Everlink.

Manufacturer part number (MPN)

LC1DT80ABNE EAN / GTIN: 3606489493479 HS code: 8536.90 Sales unit: pcs Package quantity: 5 pcs Voltage: 24-60 V Rated current: 80 A Contact configuration: 4 NO Range of product: TeSys Deca Advanced Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load Utilisation category: AC-1 Poles description: 4P [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 80 A (at <60 °C) at <= 440 V AC-1 for power circuit [Uc] control circuit voltage: 24...60 V AC 50/60 Hz; 24...60 V DC Compatibility code: LC1D Pole contact composition: 4 NO Protective cover: With [Ith] conventional free air thermal current: 80 A (at 60 °C) for power circuit; 10 A (at 60 °C) for signalling circuit Irms rated making capacity: 1000 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947

HS Code

8536.90

• EAN 3606489493479
• SAP 1200502722
• Code 82626409
