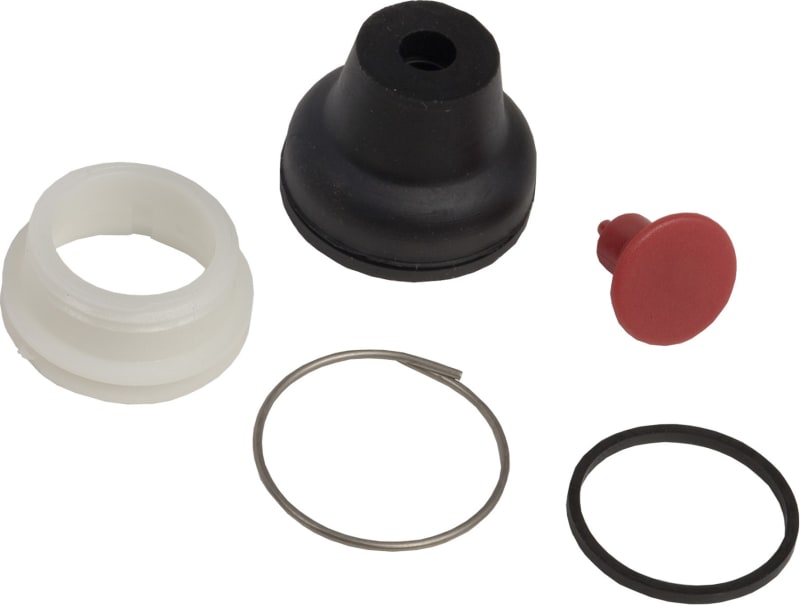

Neoprene-Button (XACB9214)

Schneider Electric XACB9214 Push-button Red Neoprene High.

Manufacturer part number (MPN)

XACB9214

EAN / GTIN

3389110640984

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Head for push-button

Component name

XACB

Marking

Unmarked

Operator additional information

Booted

Operating travel

16 mm

Cap/operator or lens colour

Red

Product compatibility

XESD1181; XESD1291; XESD1281; XESD1191

Sale per indivisible quantity

10

Product weight

0.005 kg

Standards

IEC 60947-5-1; IEC 60947-5-1; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

50

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/white

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Labelled

No

Type of button

High

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

With protective cover

No

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Switching function latching

No

HS Code

8538.90

• EAN 3389110640984
• SAP 1000008125
• Code 862535
