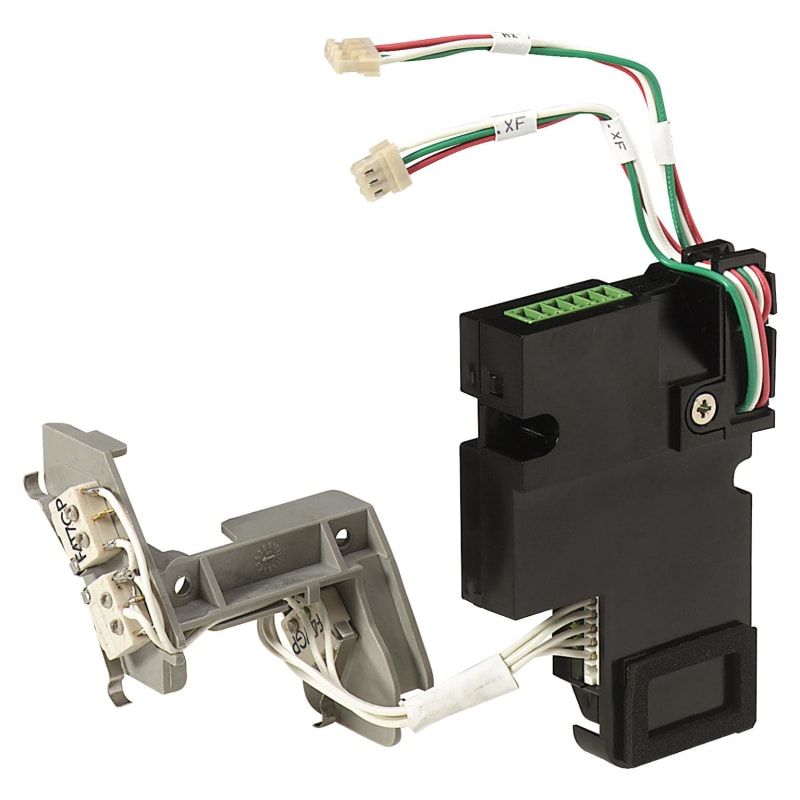

Schneider Electric MasterPact MTZ1 ON/OFF (OF) Indication Contact, 1 Changeover, Low Level, 5 A / 240 V AC, Spare

Schneider Electric LV847077SP is a low-level ON/OFF (OF) auxiliary indication contact for MasterPact MTZ1 air circuit breakers, supplied as a spare part. It provides one changeover (NO/NC) signal contact rated 5 A AC-12 at 240/380 V, with lower ratings at higher voltages and on DC. Minimum load 2 mA at 15 V. One instruction sheet is included.

Manufacturer part number (MPN)

LV847077SP EAN / GTIN: 3606481186843 HS code: 8536.90 Sales unit: pcs Range: MasterPact Device short name: OF Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ1 circuit breaker Auxiliary contacts type: Low level Signal contacts composition: 1 NO/NC Breaking capacity: 5 A AC-12 240/380 V AC 50/60 Hz; 5 A AC-12 480 V AC 50/60 Hz; 5 A AC-12 690 V AC 50/60 Hz; 5 A DC-12 250 V DC; 2.5 A DC-12 250 V DC; 0.5 A DC-12 48 V DC; 0.3 A DC-12 24 V DC minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Number of Units in Package 1: 1 Warranty (in months): 18

HS Code

8536.90

• EAN 3606481186843
• SAP 1200498222
• Code 82621803
