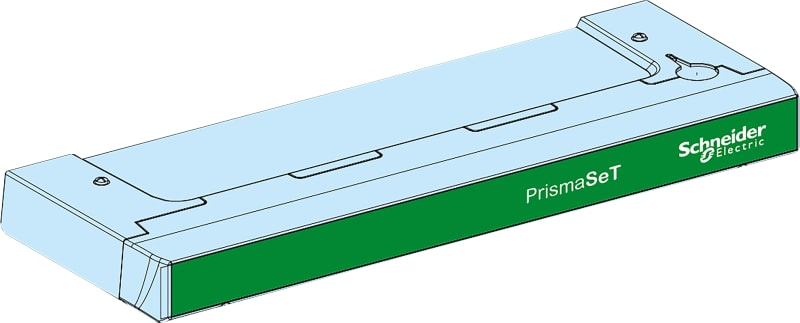

Schneider Electric PrismaSeT G Roof Plate, Width 300 mm, White
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08886 is a PrismaSeT G roof plate for wall-mounted or floor-standing enclosures of 300 mm width. Constructed from treated sheet steel and plastic with electrophoresis and hot-polymerised polyester-epoxy powder coating in matt textured white RAL 9003. Rated IP30 for enclosure and IK08 impact resistance. Complies with IEC 61439-1/-2 for low-voltage electrical distribution.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08886
- EAN / GTIN
- 3606481020796
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Roof plate
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure; Indoor enclosure
- installation description
- Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel; Plastic
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 35 mm
- Depth
- 195 mm
- Product weight
- 0.52 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 27
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- Yes
- With de-aeration
- No
- Suitable for outdoor set-up
- Yes
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- No
- Suitable for outdoor installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481020796
- SAP 1200547250
- Code 82879500
