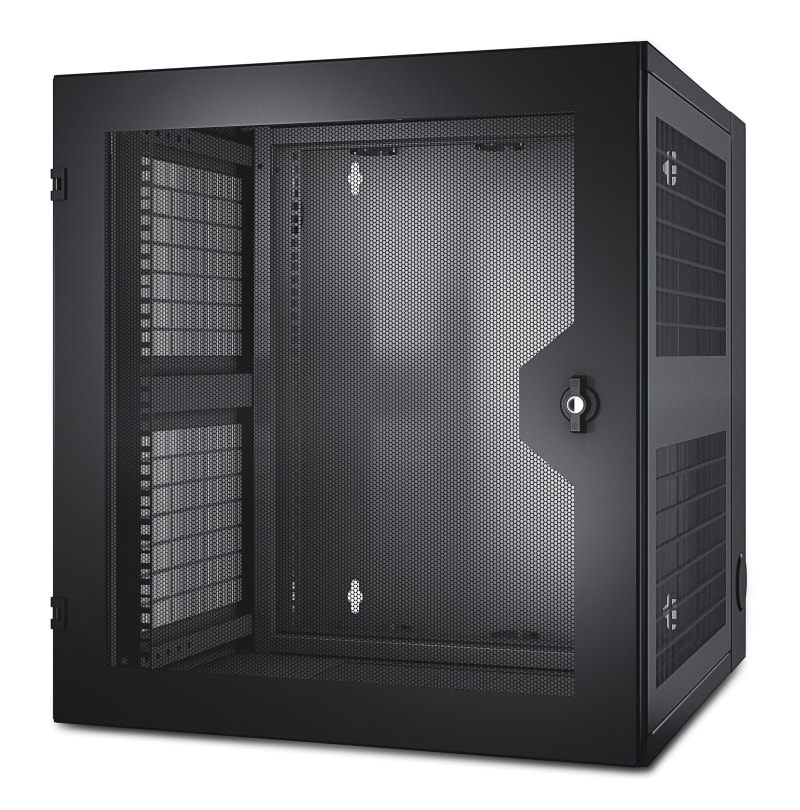

AR100HD 13U
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric AR100HD Spare parts / accessories.
Technical Specifications
- Manufacturer part number (MPN)
- AR100HD
- EAN / GTIN
- 0731304111467
- Sales unit
- pcs
- Presentation
- Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack hinges at the rear allowing for access to the back of the rack during installation and setup or while undergoing maintenance. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top-mounted and caster kit. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 13U Wall mount cabinet, 19 inches maximum mounting depth, 200lb weight capacity, 19" rack width, ships fully assembled, vented door, 5 year APC warranty.
- Product or component type
- Rack enclosure
- Number of rack unit
- 13U
- Number of cables
- 1
- Provided equipment
- Key(s); User manual; Wall-mounting template
- Height
- 663 mm
- Width
- 584 mm
- Depth
- 631 mm
- Product weight
- 42.73 kg
- Colour
- Black
- Mounting preference
- No preference
- mounting mode
- Not rack-mountable
- Maximum mounting depth
- 482.6 mm
- Rack width
- 19"
- Marking
- 16 gauge EIA mounting rail; 16 gauge front door; 16 gauge post; 13 gauge rear door; 18 gauge roof; 18 gauge side panels
- Permanent permissible load
- 90.7 kg static
- Standards
- EIA-310E
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 83.8 cm
- Package 1 Width
- 68.6 cm
- Package 1 Length
- 77.5 cm
- Package 1 Weight
- 52.17 kg
- Country of origin
- IN
- Warranty (in months)
- 60
- Mounting level
- Front and rear
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Number of height units
- 13
- Max. load capacity
- 90.72 kg
- With roof plate
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Material
- Steel
- Surface finishing
- Powder coating
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 0731304111467
- SAP 1200723249
- Code 83857937
